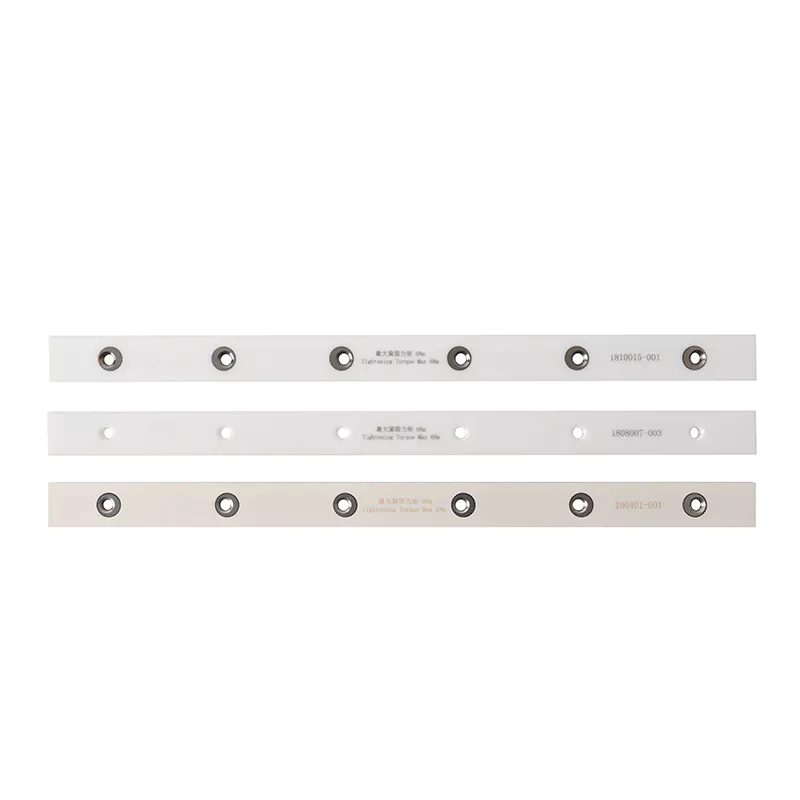

Ceramic Bed Knives
Used for pelletizing polyester PET, nylon PA6/PA66 etc
The cutter body is made of high purity imported zirconia material with high hardness and excellent wear resistance and toughness
Accuracy: 0.002mm
Features:
1.Non-standard customization solution can be provided according to working conditions
2. We can customized produce bed knives based on the used Pelletizer Rotor Knives to better adjust the clearance between pelletizer rotor knives and bed knives, can save the cost of replacing the pelletizer rotor knives
3. Special for cutting HIT particles,with better wear resistance and impact resistance, reducing the frequency of tool change
Ceramic Bedknife
ITEM NO. | Overall Length | Width | Thickness |
---|---|---|---|
STB1101K130 | 130 | 20 | 8 |
STB1101K140 | 140 | 20 | 8 |
STB1101K156 | 156 | 20 | 8 |
STB1101K212 | 212 | 20 | 8 |
STB1101K230 | 230 | 20 | 8 |
STB1101K240 | 240 | 20 | 8 |
STB1101K305 | 305 | 20 | 8 |
STB1101K318 | 318 | 20 | 8 |
STB1101K350 | 350 | 20 | 8 |
