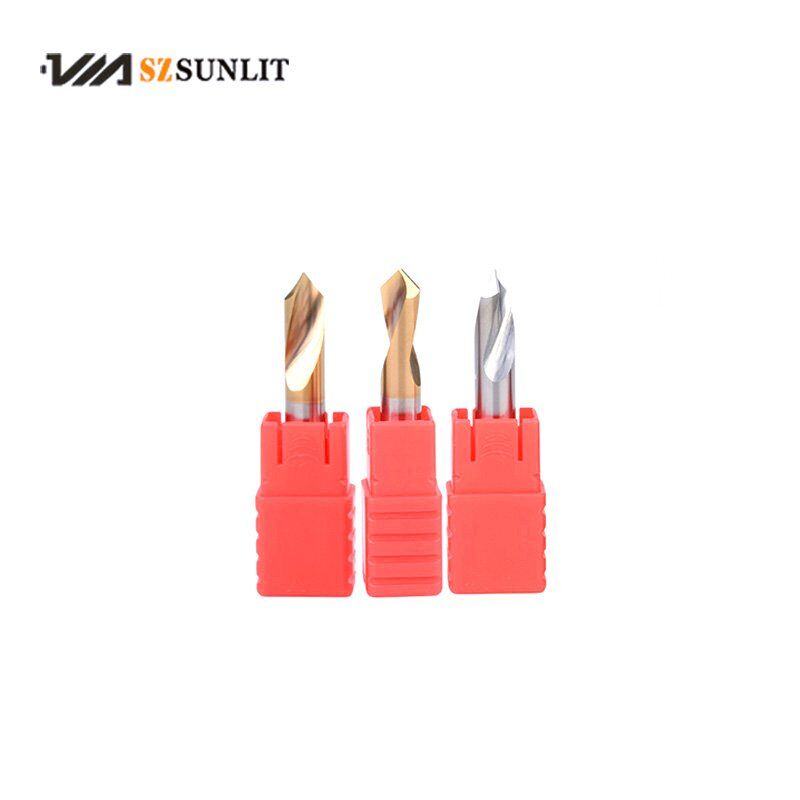

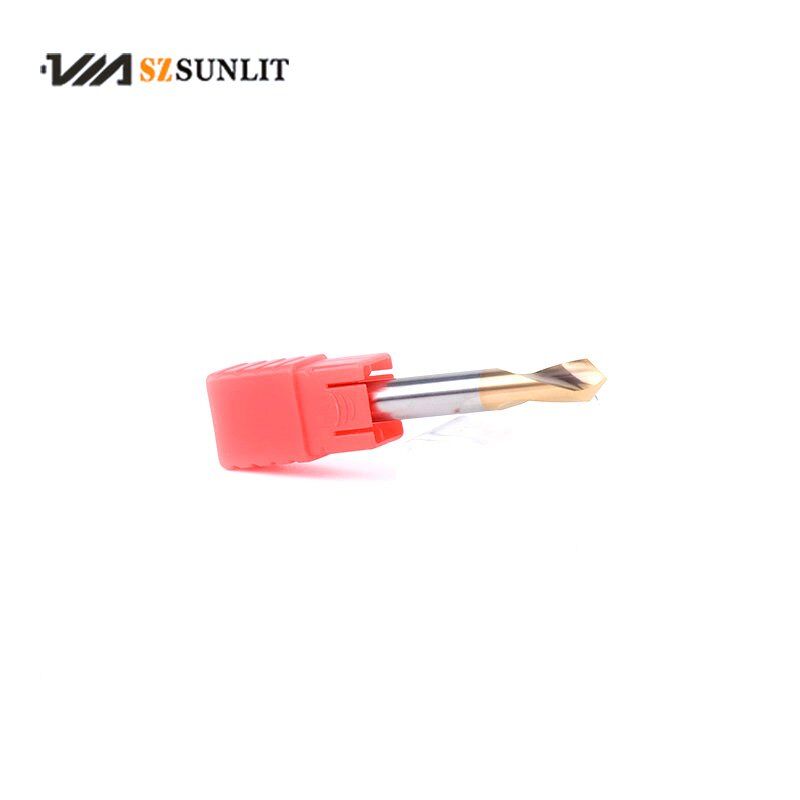

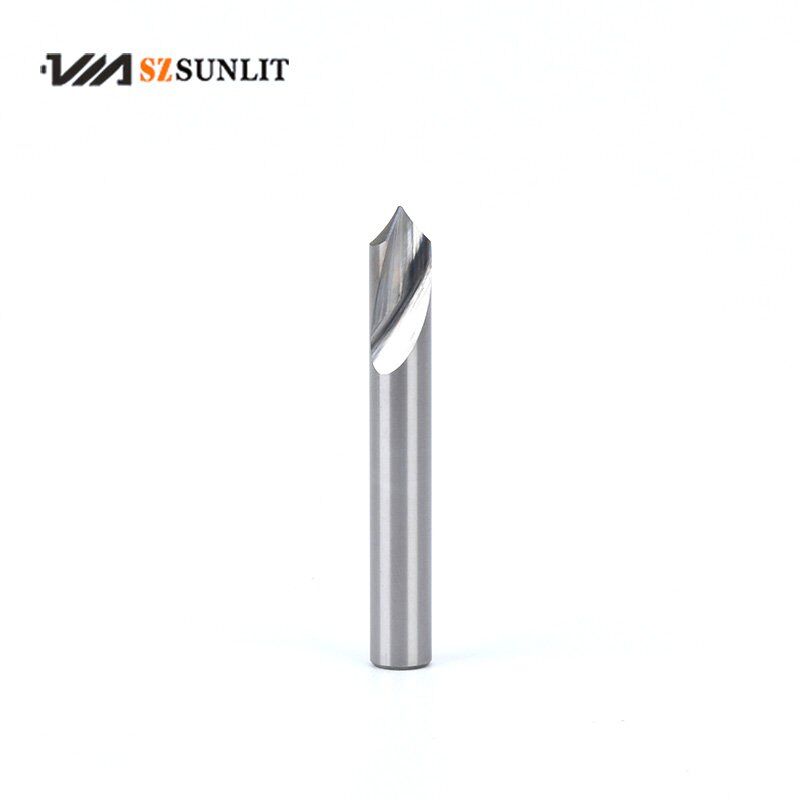

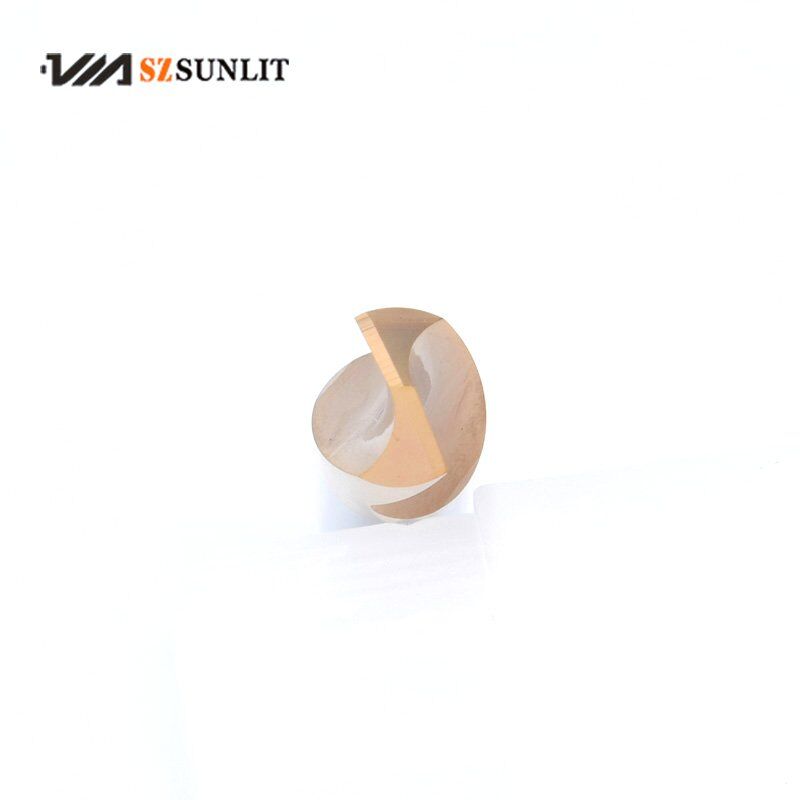

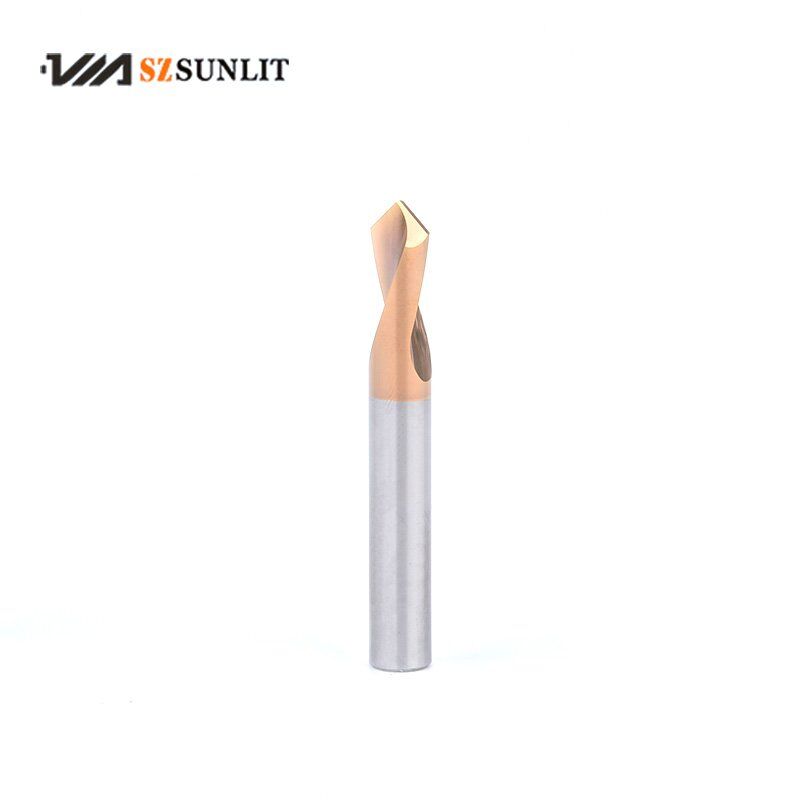

NC SPOTTING DRILLS
| Brand | SZSUNLIT |
|---|---|
| Material | HSSM35/Carbide ( Materials from Chinese/Austria/Japan) |
| Coating | Bright, TIALN, TIN |
| Angle | 90°/120° |
| OEM&ODM | Availble |
NC SPOTTING DRILLS
Best Suitable materials : Carbon Steel，Alloy Steel
could also suitable for below materials:
1. Aluminum,bronze
2. Stainless steel, Mild steel
3. Alloy steel, cast iron
Features:
1. For more precise centering work on NC/CNC machines
2. The big diameter of the tool permits chamfering work after centering continuously
| ITEM NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| D410103046 | 3 | 3 | 12 | 46 |
| D410104055 | 4 | 4 | 12 | 55 |
| D410105060 | 5 | 5 | 15 | 60 |
| D410106066 | 6 | 6 | 20 | 66 |
| D410108079 | 8 | 8 | 25 | 79 |
| D410110089 | 10 | 10 | 25 | 89 |
| D410112102 | 12 | 12 | 30 | 102 |
| D410114115 | 14 | 14 | 35 | 115 |
| D410116115 | 16 | 16 | 35 | 115 |
| D410118130 | 18 | 18 | 40 | 130 |
| D410120131 | 20 | 20 | 40 | 131 |
