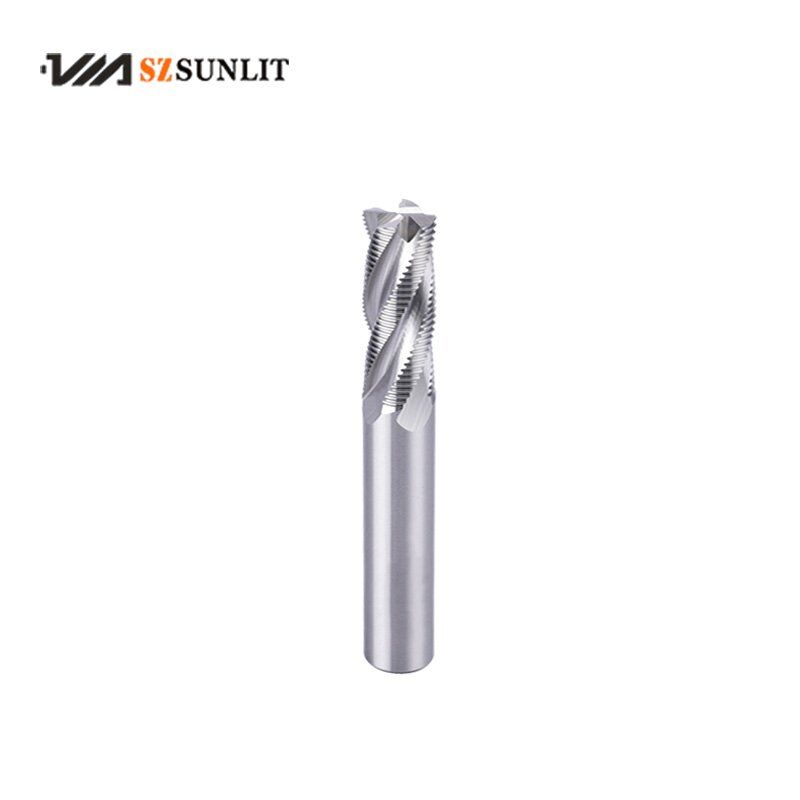

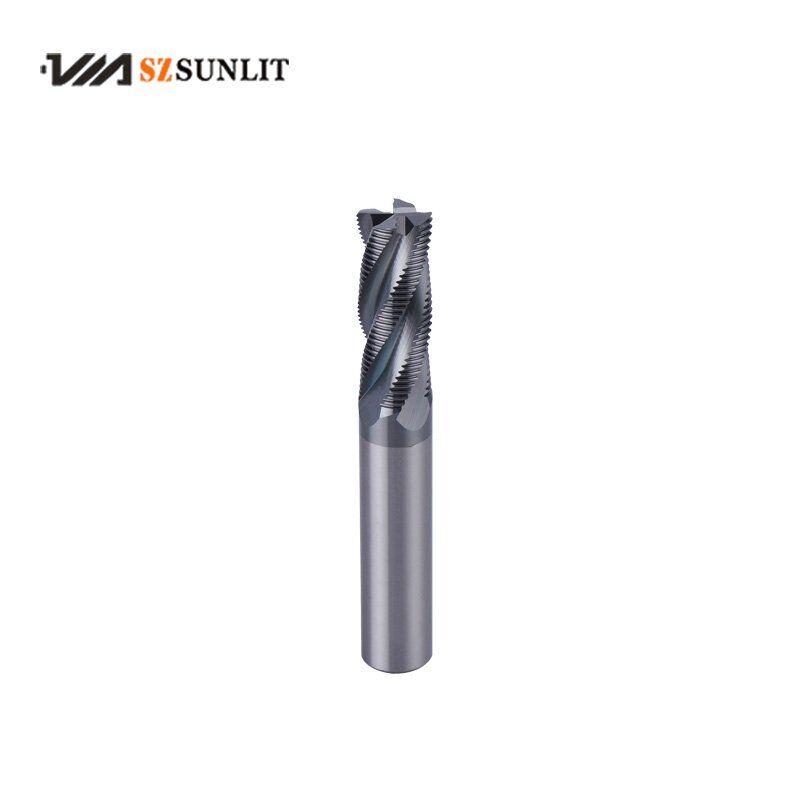

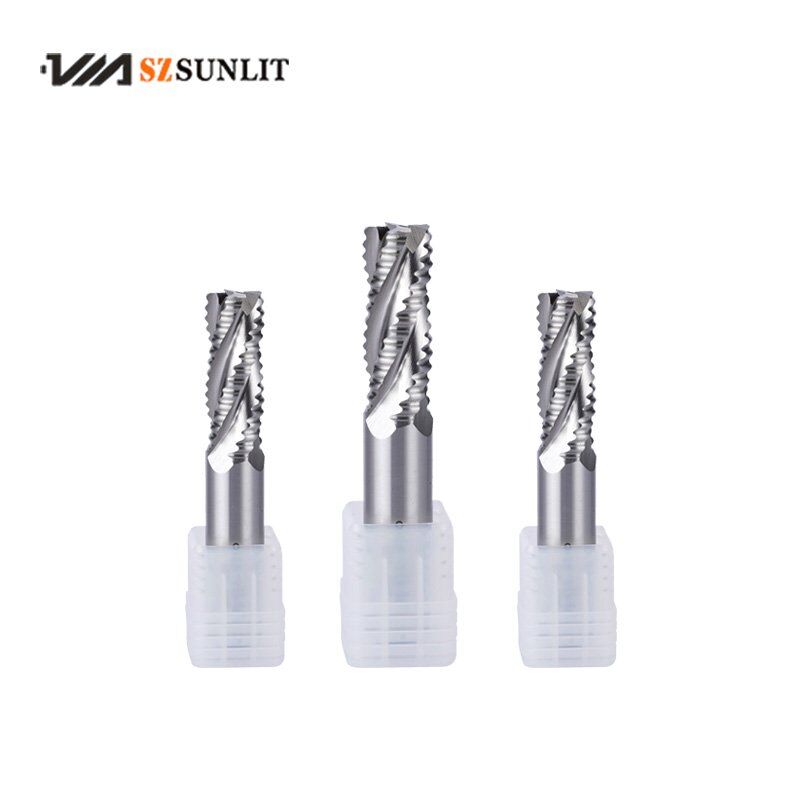

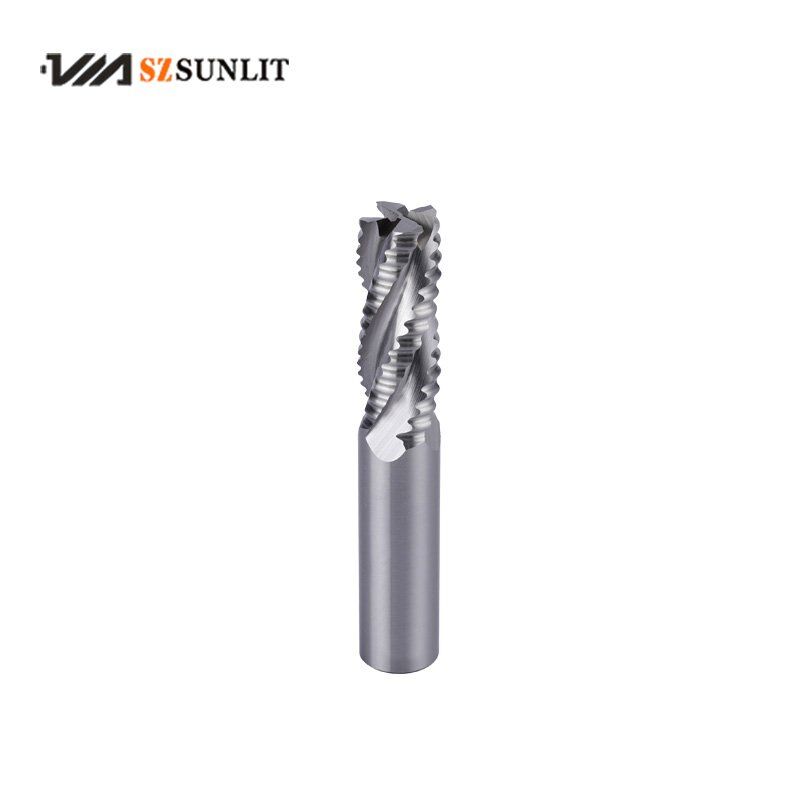

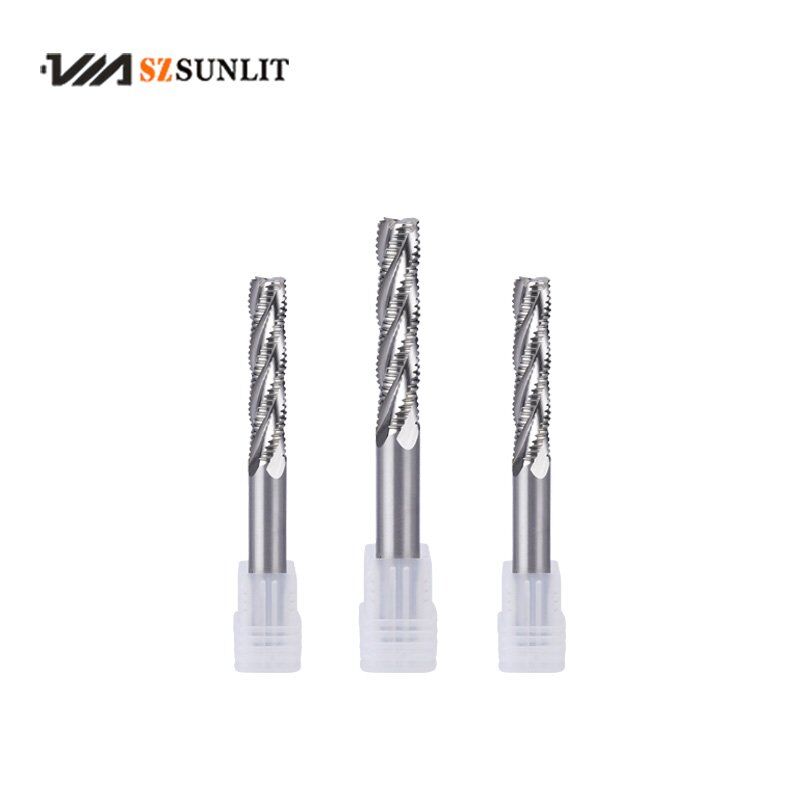

HSSPM ROUGH END MILLS
| Brand | SZSUNLIT |
|---|---|
| Material | HSSPM ( Materials from Austria) |
| Pitch | Rough/ Medium-Rough/Fine-Rough |
| Coating | TICN |
| Application | CNC machining center, milling machine |
| OEM&ODM | Availble |
HSSPM ROUGH END MILLS
Best Suitable materials : Stainless Steel
could also suitable for below materials:
1. Die steel/cast iron/, alloy steel/aluminum alloy
2. Titanium alloy, high temperature nickel-based material
Features:
1. These end mills are furnished as regular with right-hand cutting and right-hand helical flutes
2. These are designed for slotting,drilling,pocketing and general-purpose operation
3. Three times more wear-resistance than HSS M42 rough end mills
4. Can solve the problem of brittleness and breakage of carbide end mills
| TOLERANCE RANGE | |
| FLUTE DIA. | 0～-0.02mm |
| SHANK DIA. | h6 |
| ITEM NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STE6101060 | 6 | 6 | 13 | 57 |
| STE6101080 | 8 | 10 | 20 | 65 |
| STE6101100 | 10 | 12 | 25 | 75 |
| STE6101120 | 12 | 12 | 30 | 80 |
| STE6101140 | 14 | 12 | 35 | 90 |
| STE6101160 | 16 | 16 | 40 | 95 |
| STE6101180 | 18 | 16 | 40 | 105 |
| STE6101200 | 20 | 20 | 45 | 110 |
| STE6101220 | 22 | 20 | 45 | 110 |
| STE6101250 | 25 | 25 | 50 | 120 |
| STE6101260 | 26 | 25 | 50 | 120 |
| STE6101280 | 28 | 25 | 55 | 125 |
| STE6101300 | 30 | 25 | 55 | 125 |
| STE6101320 | 32 | 32 | 60 | 145 |
| STE6102100 | 10 | 10 | 45 | 95 |
| STE6102120 | 12 | 12 | 53 | 110 |
| STE6102140 | 14 | 12 | 53 | 110 |
| STE6102160 | 16 | 16 | 63 | 123 |
| STE6102180 | 18 | 16 | 63 | 123 |
| STE6102200 | 20 | 20 | 75 | 141 |
| STE6102300 | 30 | 25 | 90 | 166 |
| STE6102320 | 32 | 32 | 106 | 186 |
