HSSCO FORMING TAPS With Fluteless
| Brand | SZSUNLIT |
|---|---|
| Material | HSS Co ( Materials from China/Japan) |
| Coating | TIN |
| Standard | JIS |
| Application | CNC machining center, Tapping machine |
| OEM&ODM | Availble |

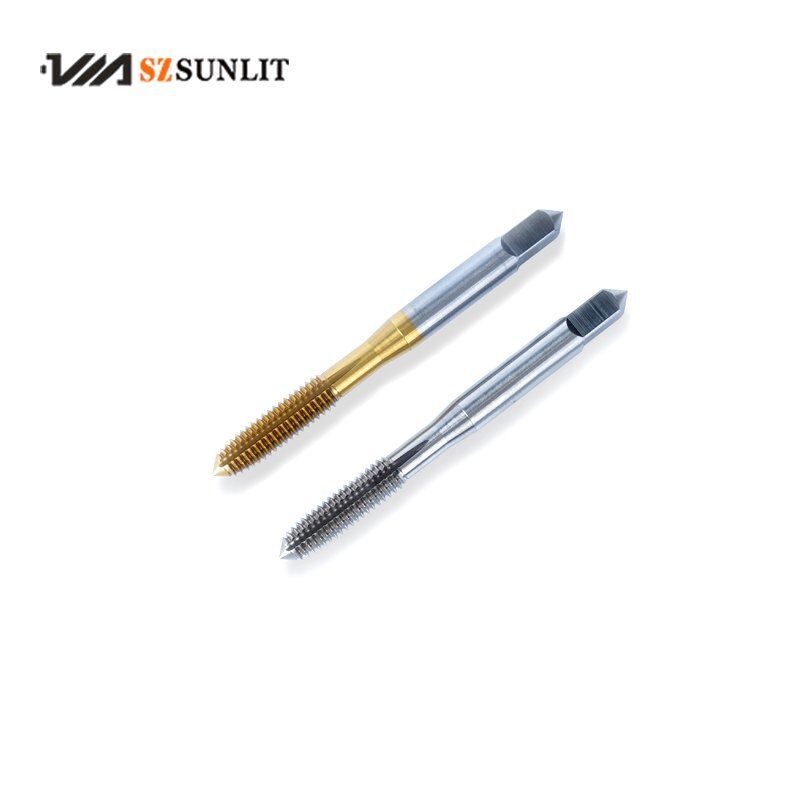

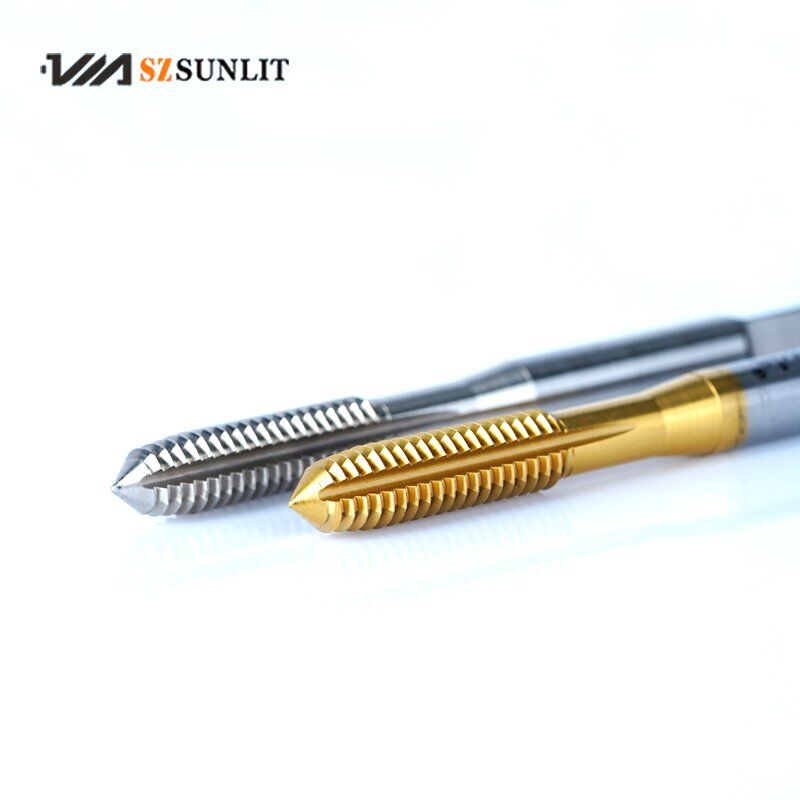

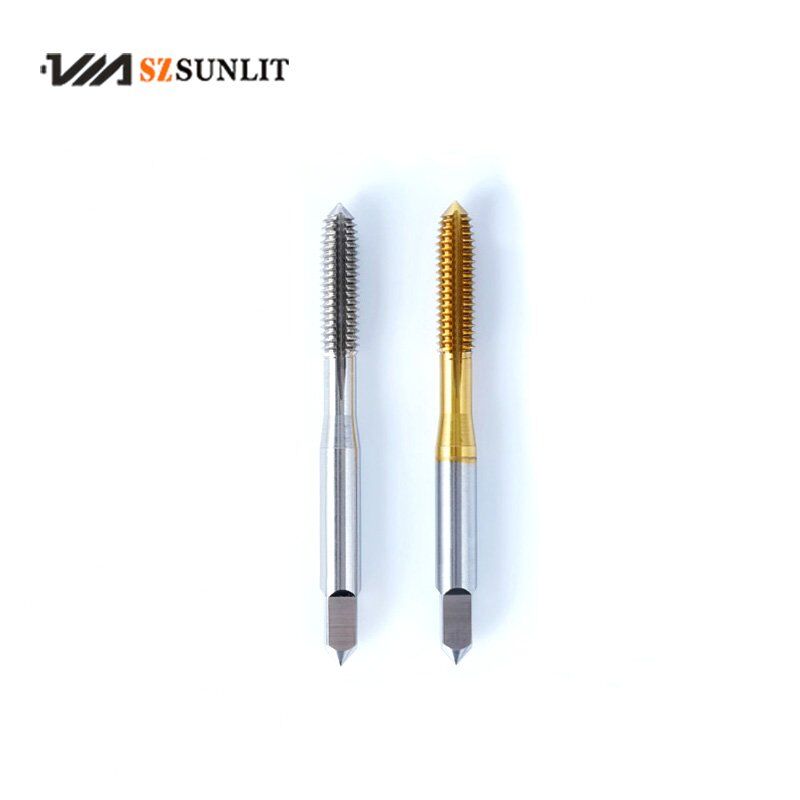

HSSCO FORMING TAPS With Fluteless
Best Suitable materials :
1. Red copper, brass, aluminum-zinc alloy, die-casting and other plastic non-ferrous alloys
2. Low carbon steel with tensile strength below 750N/MM², alloy steel, stainless steel etc.
Features:
Suitable for tapping blind or through holes in stainless steel, carbon steel, alloy steel, non-ferrous alloys,low carbon steels, red copper, brass, aluminum-zinc alloy, die-casting and other plastic non-ferrous alloys
| STCT507 Taps Series | Size | Pitch | L | i | li | d | k | Ik | Type | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| 100250 | M1 | 0.25 | H4 | 32 | 5.5 | 3 | 2.5 | 5 | 1 | |
| 100250 | M1 | 0.25 | H5 | 32 | 5.5 | 3 | 2.5 | 5 | 1 | |
| 120250 | M1.2 | 0.25 | H4 | 32 | 5.5 | 3 | 2.5 | 5 | 1 | |
| 120250 | M1.2 | 0.25 | H5 | 32 | 5.5 | 3 | 2.5 | 5 | I | |
| 140300 | M1.4 | 0.3 | H4 | 36 | 8 | 3 | 2.5 | 5 | 1 | |
| 140300 | M1.4 | 0.3 | H5 | 36 | 8 | 3 | 2.5 | 5 | I | |
| 160350 | M1.6 | 0.35 | H4 | 36 | 8 | 3 | 2.5 | 5 | 1 | |
| 160350 | M1.6 | 0.35 | H5 | 36 | 8 | 3 | 2.5 | 5 | I | |
| 170350 | M1.7 | 0.35 | H4 | 36 | 8 | 3 | 2.5 | 5 | 1 | |
| 170350 | M1.7 | 0.35 | H5 | 36 | 8 | 3 | 2.5 | 5 | I | |
| 200400 | M2 | 0.4 | H4 | 42 | 9.5 | 3 | 2.5 | 5 | 2 | |
| 200400 | M2 | 0.4 | H5 | 42 | 9.5 | 3 | 2.5 | 5 | 2 | |
| 200400 | M2 | 0.4 | H6 | 42 | 9.5 | 3 | 2.5 | 5 | 2 | |
| 230400 | M2.3 | 0.4 | H4 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 |
| 250450 | M2.5 | 0.45 | H5 | 44 | 9.5 | 15 | 3 | 2.5 | 5 | 2 |
| 250450 | M2.5 | 0.45 | H6 | 44 | 9.5 | 15 | 3 | 2.5 | 5 | 2 |
| 260450 | M2.6 | 0.45 | H5 | 44 | 9.5 | 16 | 3 | 2.5 | 5 | 2 |
| 260450 | M2.6 | 0.45 | H6 | 44 | 9.5 | 16 | 3 | 2.5 | 5 | 2 |
| 300500 | M3 | 0.5 | H5 | 46 | 11 | 16 | 4 | 3.2 | 6 | 2 |
| 300500 | M3 | 0.5 | H6 | 46 | 11 | 16 | 4 | 3.2 | 6 | 2 |
| 300500 | M3 | 0.5 | H7 | 46 | 11 | 16 | 4 | 3.2 | 6 | 2 |
| 350600 | M3.5 | 0.6 | H5 | 48 | 13 | 18 | 4 | 3.2 | 6 | 2 |
| 350600 | M3.5 | 0.6 | H6 | 48 | 13 | 18 | 4 | 3.2 | 6 | 2 |
| 350600 | M3.5 | 0.6 | H7 | 48 | 13 | 18 | 4 | 3.2 | 6 | 2 |
| 400700 | M4 | 0.7 | H6 | 52 | 13 | 20 | 5 | 4 | 7 | 2 |
| 400700 | M4 | 0.7 | H7 | 52 | 13 | 20 | 5 | 4 | 7 | 2 |
| 500800 | M5 | 0.8 | H6 | 60 | 16 | 21 | 5.5 | 4.5 | 7 | 2 |
| 500800 | M5 | 0.8 | H7 | 60 | 16 | 21 | 5.5 | 4.5 | 7 | 2 |
| 601000 | M6 | 1 | H6 | 62 | 19 | 25 | 6 | 4.5 | 7 | 2 |
| 601000 | M6 | 1 | H7 | 62 | 19 | 25 | 6 | 4.5 | 7 | 2 |
| 801250 | M8 | 1.25 | H7 | 70 | 22 | 30 | 6.2 | 5 | 8 | 3 |
