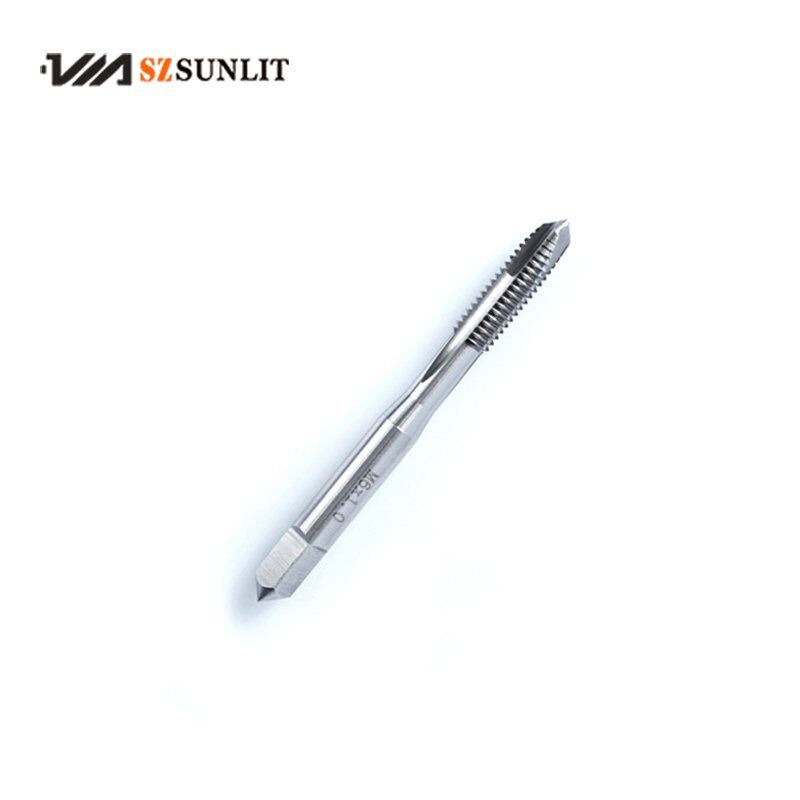

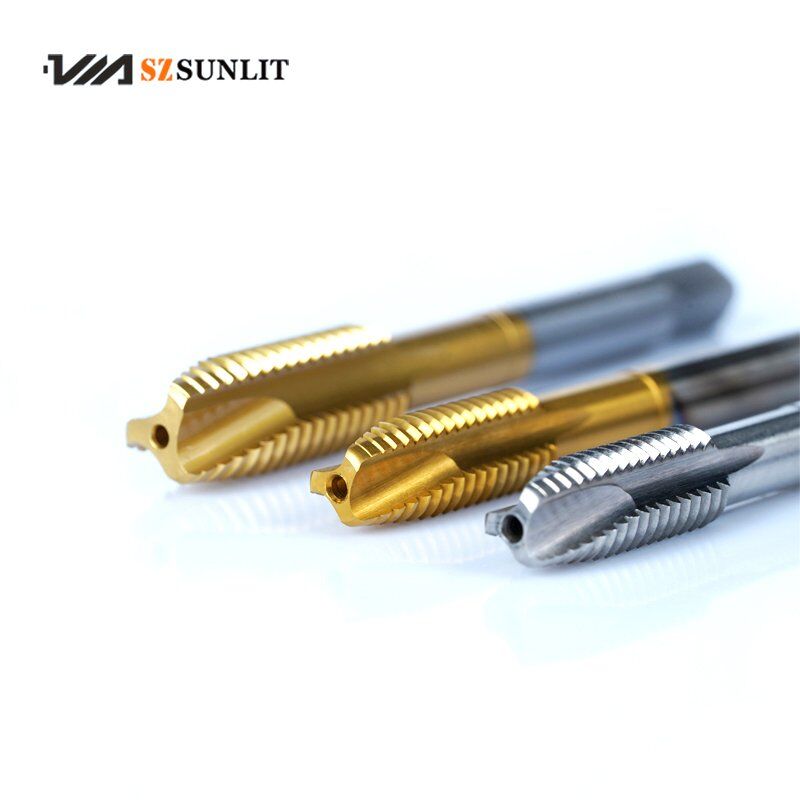

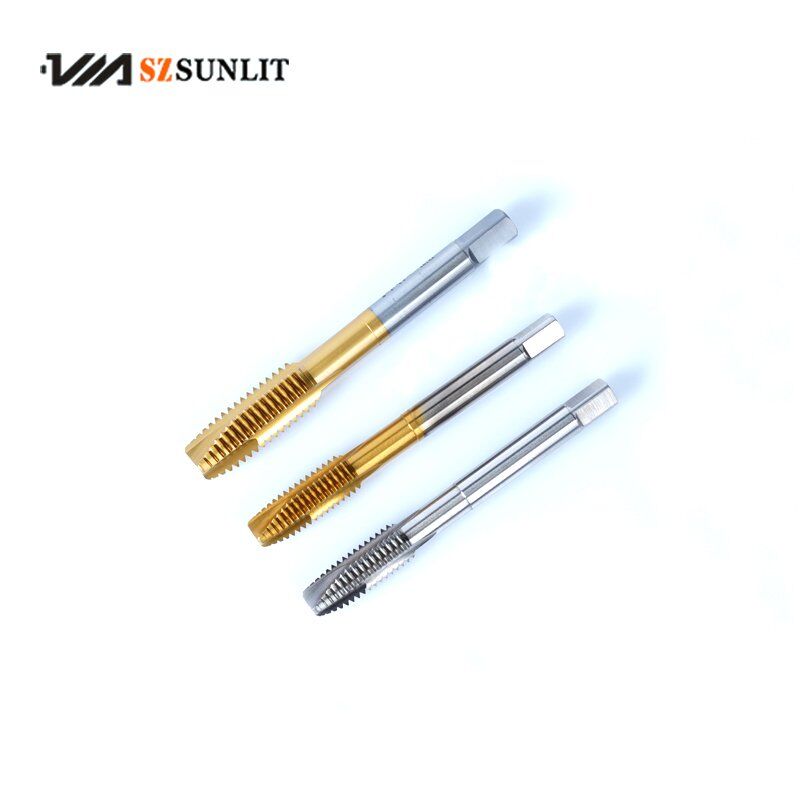

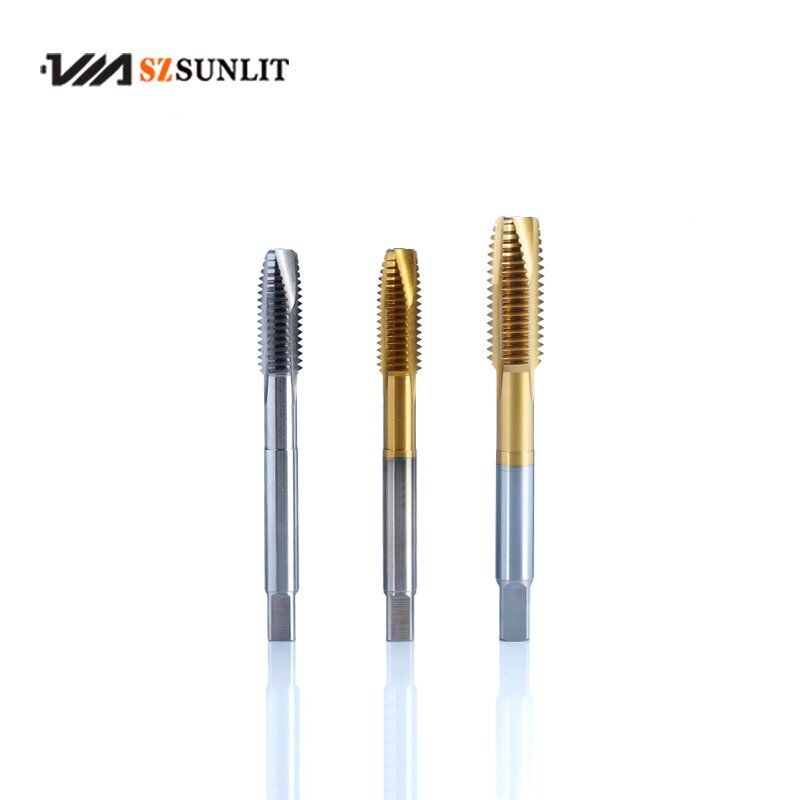

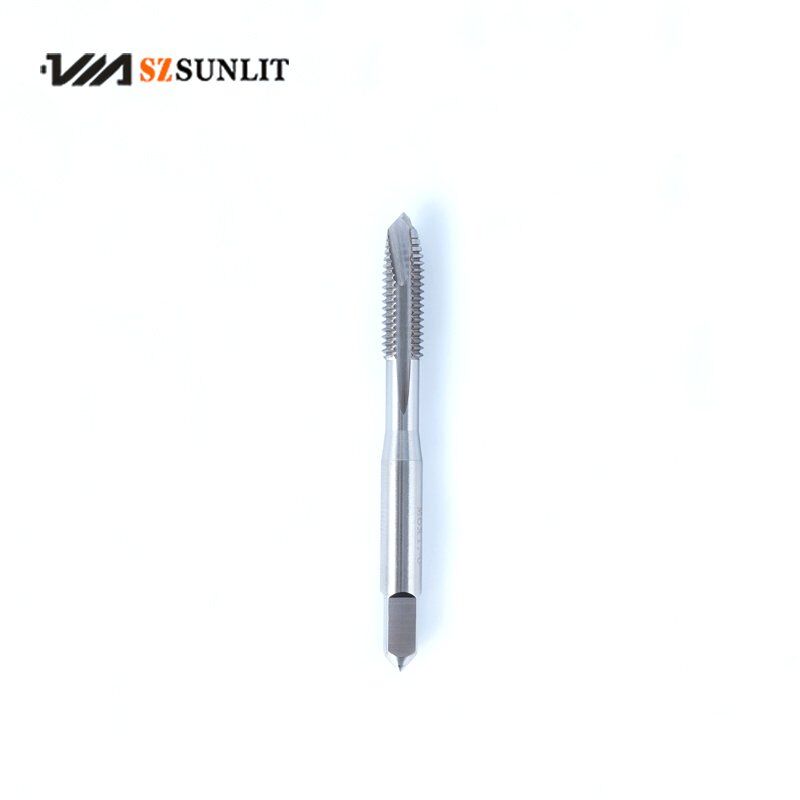

HSSCO SPIRAL POINT TAPS
| Mode | STCT401 |
|---|---|
| Brand | SZSUNLIT |
| Material | HSS Co ( Materials from China/Japan) |
| Coating | TIN |
| Standard | JIS |
| Application | CNC machining center, Tapping machine |
| OEM&ODM | Availble |
HSSCO SPIRAL POINT TAPS
Best Suitable materials :
1. Stainless steel, carbon steel, alloy steel, non-ferrous metals
2. Low carbon steel with tensile strength below 750N/MM², steel, magnesium-aluminum alloy, etc.
Features:
1. Suitable for tapping through holes in stainless steel, carbon steel, alloy steel, non-ferrous metals,low carbon steels, steel and magnesium-aluminum alloy
2. The chips are produced in a continuous coil state
| STCT401 Taps Series | Size | Pitch | L | i | li | d | k | Ik | Type | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| 0100250 | M1 | 0.25 | 32 | 5.5 | 3 | 2.5 | 5 | 1 | 2 | |
| 0110250 | M1.1 | 0.25 | 32 | 5.5 | 3 | 2.5 | 5 | 1 | 2 | |
| 0120250 | M1.2 | 0.25 | 32 | 5.5 | 3 | 2.5 | 5 | 1 | 2 | |
| 0140300 | M1.4 | 0.3 | 36 | 8 | 3 | 2.5 | 5 | 1 | 2 | |
| 0160350 | M1.6 | 0.35 | 36 | 8 | 3 | 2.5 | 5 | 1 | 2 | |
| 0170350 | M1.7 | 0.35 | 36 | 8 | 3 | 2.5 | 5 | 1 | 2 | |
| 0180350 | M1.8 | 0.35 | 36 | 8 | 3 | 2.5 | 5 | 1 | 2 | |
| 0200400 | M2 | 0.4 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 | 3 |
| 0220450 | M2.2 | 0.45 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 | 3 |
| 0230400 | M2.3 | 0.4 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 | 3 |
| 0250450 | M2.5 | 0.45 | 44 | 9.5 | 16 | 3 | 2.5 | 5 | 2 | 3 |
| 0260450 | M2.6 | 0.45 | 44 | 9.5 | 16 | 3 | 2.5 | 5 | 2 | 3 |
| 0300500 | M3 | 0.5 | 46 | 11 | 18 | 4 | 3.2 | 6 | 2 | 3 |
| 0350600 | M3.5 | 0.6 | 48 | 13 | 20 | 4 | 3.2 | 6 | 2 | 3 |
| 0400700 | M4 | 0.7 | 52 | 13 | 20 | 5 | 4 | 7 | 2 | 3 |
| 0450750 | M4.5 | 0.75 | 52 | 13 | 21 | 5 | 4 | 7 | 2 | 3 |
| 0500800 | M5 | 0.8 | 60 | 16 | 25 | 5.5 | 4.5 | 7 | 2 | 3 |
| 0550900 | M5.5 | 0.9 | 60 | 16 | 25 | 5.5 | 4.5 | 7 | 2 | 3 |
| 0601000 | M6 | 1 | 62 | 19 | 28 | 6 | 4.5 | 7 | 2 | 3 |
| 0701000 | M7 | 1 | 65 | 19 | 30 | 6.2 | 5 | 8 | 3 | 3 |
| 0801250 | M8 | 1.25 | 70 | 22 | 6.2 | 5 | 8 | 3 | 3 | |
| 0901250 | M9 | 1.25 | 72 | 22 | 7 | 5.5 | 8 | 3 | 3 | |
| 1001500 | M10 | 1.5 | 75 | 24 | 7 | 5.5 | 8 | 3 | 3 | |
| 1101500 | M11 | 1.5 | 80 | 25 | 8 | 6 | 9 | 3 | 3 | |
| 1201750 | M12 | 1.75 | 82 | 29 | 8.5 | 6.5 | 9 | 3 | 3 | |
| 1402000 | M14 | 2 | 88 | 30 | 10.5 | 8 | 11 | 3 | 3 | |
| 1502000 | M15 | 2 | 90 | 30 | 10.5 | 8 | 11 | 3 | 3 | |
| 1602000 | M16 | 2 | 95 | 32 | 12.5 | 10 | 13 | 3 | 3 | |
| 1702000 | M17 | 2 | 95 | 32 | 13 | 10 | 13 | 3 | 3 | |
| 1802500 | M18 | 2.5 | 100 | 37 | 14 | 11 | 14 | 3 | 3 | |
| 2002500 | M20 | 2.5 | 105 | 37 | 15 | 12 | 15 | 3 | 3 | |
| 2202500 | M22 | 2.5 | 115 | 38 | 17 | 13 | 16 | 3 | 3 | |
| 2403000 | M24 | 3 | 120 | 45 | 19 | 15 | 18 | 3 | 3 | |
| 2603000 | M26 | 3 | 125 | 45 | 20 | 15 | 18 | 3 | 4 | |
| 2703000 | M27 | 3 | 130 | 45 | 20 | 15 | 18 | 3 | 4 | |
| 3003500 | M30 | 3.5 | 135 | 48 | 23 | 17 | 20 | 3 | 4 | |
| 3303500 | M33 | 3.5 | 145 | 51 | 25 | 19 | 22 | 3 | 4 | |
| 3604000 | M36 | 4 | 155 | 57 | 28 | 21 | 24 | 3 | 4 | |
| 3904000 | M39 | 4 | 165 | 60 | 30 | 23 | 26 | 3 | 4 | |
| 4204500 | M42 | 4.5 | 175 | 60 | 32 | 26 | 30 | 3 | 4 |
