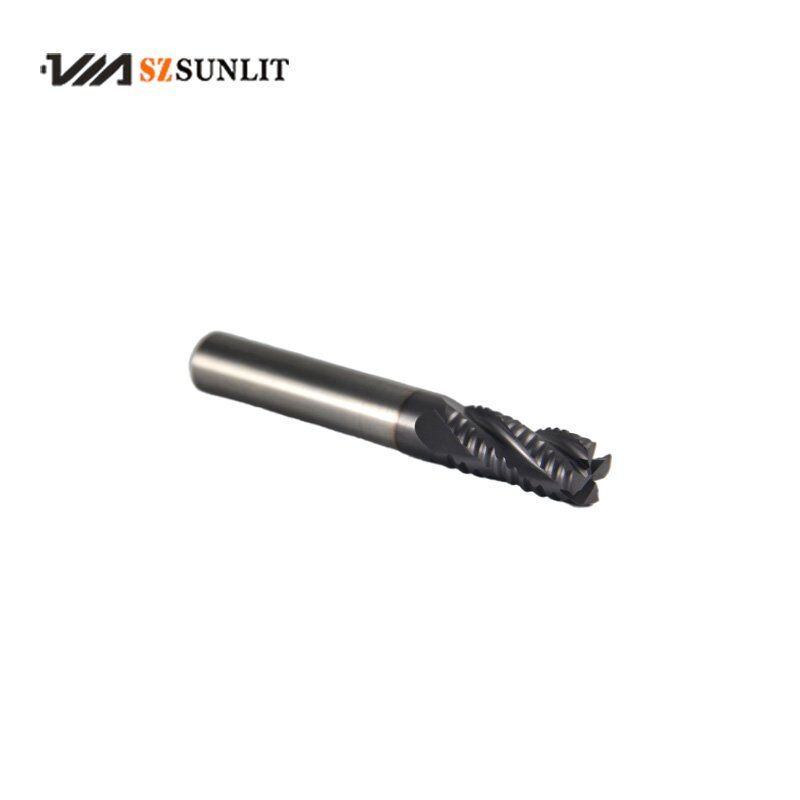

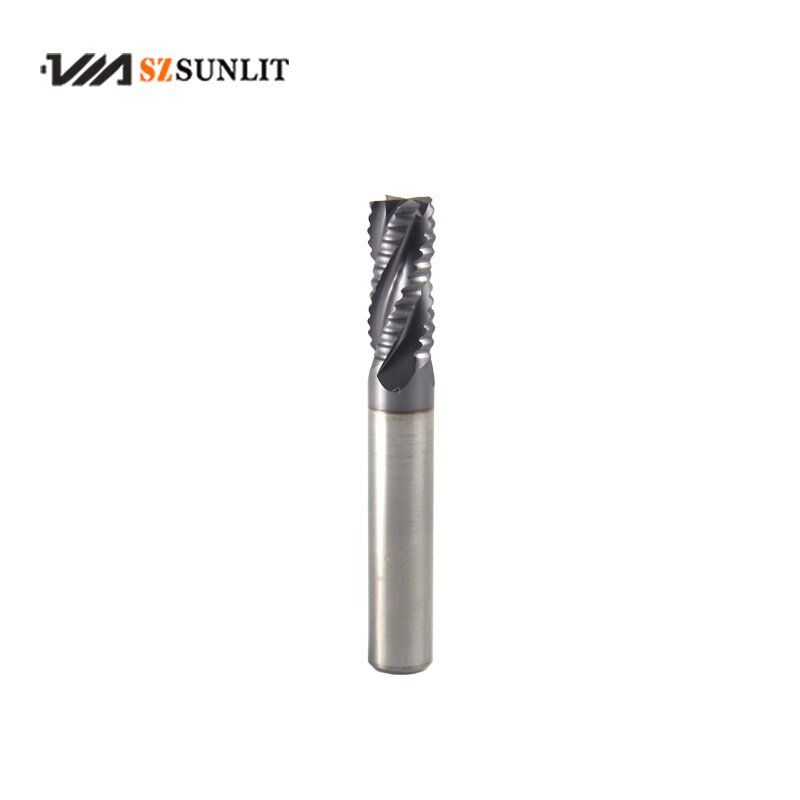

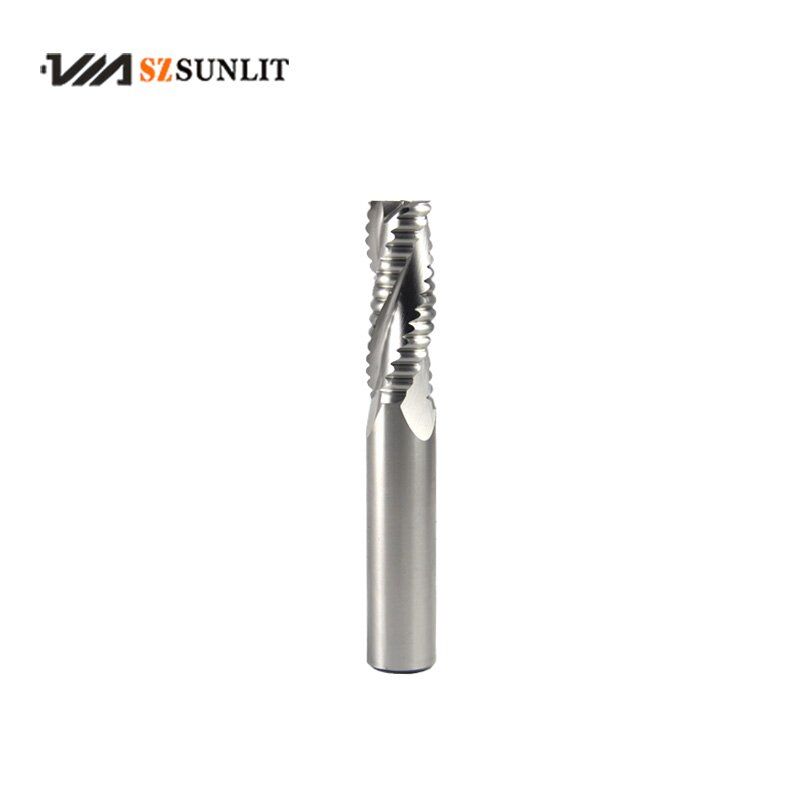

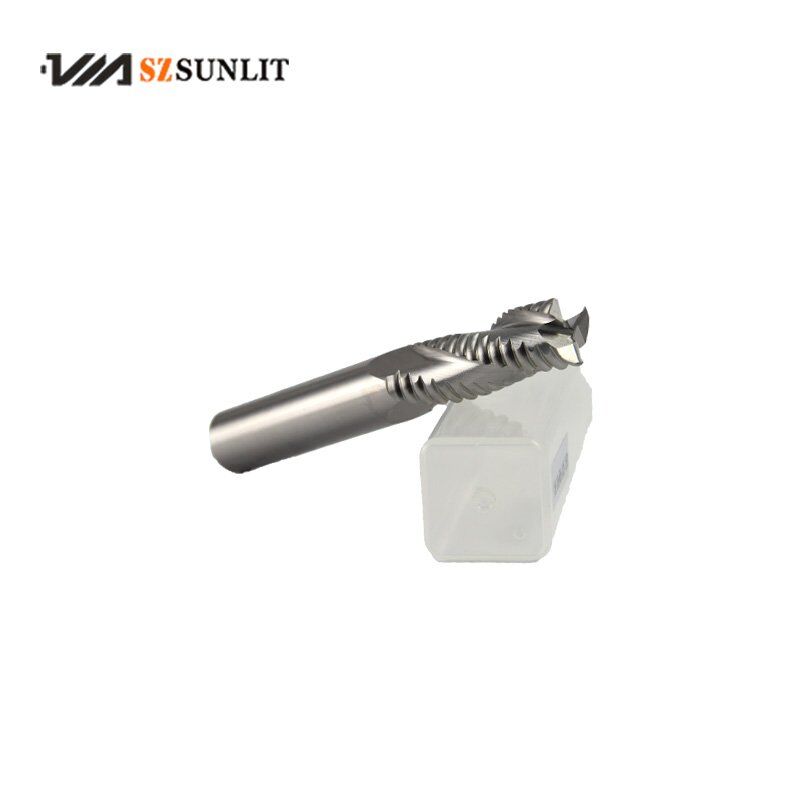

HSSCO 8% ROUGH END MILLS
| Brand | SZSUNLIT |
|---|---|
| Material | HSSM42 ( Materials from Austria/Japan) |
| Pitch | Rough/ Medium-Rough/Fine-Rough |
| Coating | None, TIALN, TICN, TIN |
| Application | CNC machining center, milling machine |
| OEM&ODM | Availble |
HSSCO 8% ROUGH END MILLS
Best Suitable materials :Carbon Steel, Alloy
Also can work for Prehardened Steel HRC30-40, aluminum
Features:
1. These end mills are furnished as regular with right-hand cutting and right-hand helical flutes
2. These are designed for slotting,drilling,pocketing and general-purpose operation
3. To do metal cutting for general Steels,Brass etc.
4. Other shank design on your request
| TOLERANCE RANGE | |
| FLUTE DIA. | 0～-0.02mm |
| SHANK DIA. | h6 |
| ITEM NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STE6103060 | 6 | 6 | 13 | 57 |
| STE6103080 | 8 | 10 | 20 | 65 |
| STE6103100 | 10 | 12 | 25 | 75 |
| STE6103120 | 12 | 12 | 30 | 80 |
| STE6103140 | 14 | 12 | 35 | 90 |
| STE6103160 | 16 | 16 | 40 | 95 |
| STE6103180 | 18 | 16 | 40 | 105 |
| STE6103200 | 20 | 20 | 45 | 110 |
| STE6103220 | 22 | 20 | 45 | 110 |
| STE6103250 | 25 | 25 | 50 | 120 |
| STE6103260 | 26 | 25 | 50 | 120 |
| STE6103280 | 28 | 25 | 55 | 125 |
| STE6103300 | 30 | 25 | 55 | 125 |
| STE6103320 | 32 | 32 | 60 | 145 |
| STE6104100 | 10 | 10 | 45 | 95 |
| STE6104120 | 12 | 12 | 53 | 110 |
| STE6104140 | 14 | 12 | 53 | 110 |
| STE6104160 | 16 | 16 | 63 | 123 |
| STE6104180 | 18 | 16 | 63 | 123 |
| STE6104200 | 20 | 20 | 75 | 141 |
| STE6104300 | 30 | 25 | 90 | 166 |
| STE6104320 | 32 | 32 | 106 | 186 |
