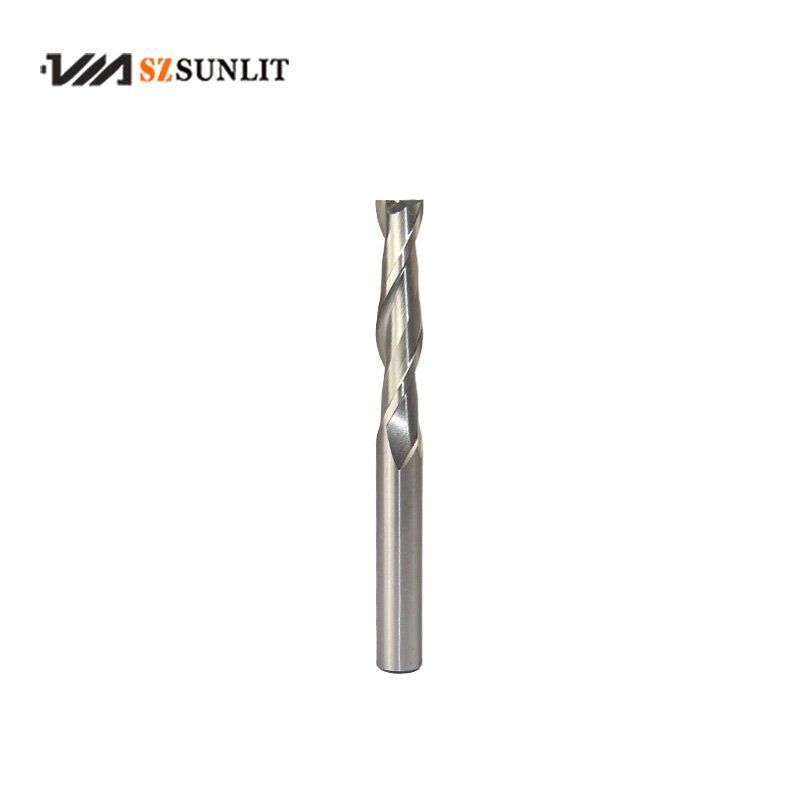

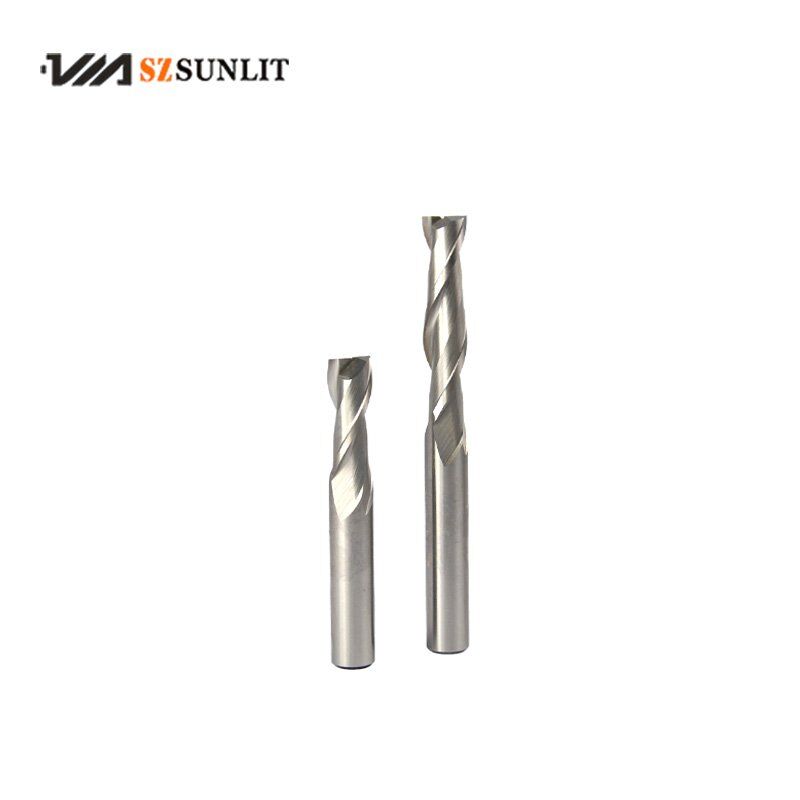

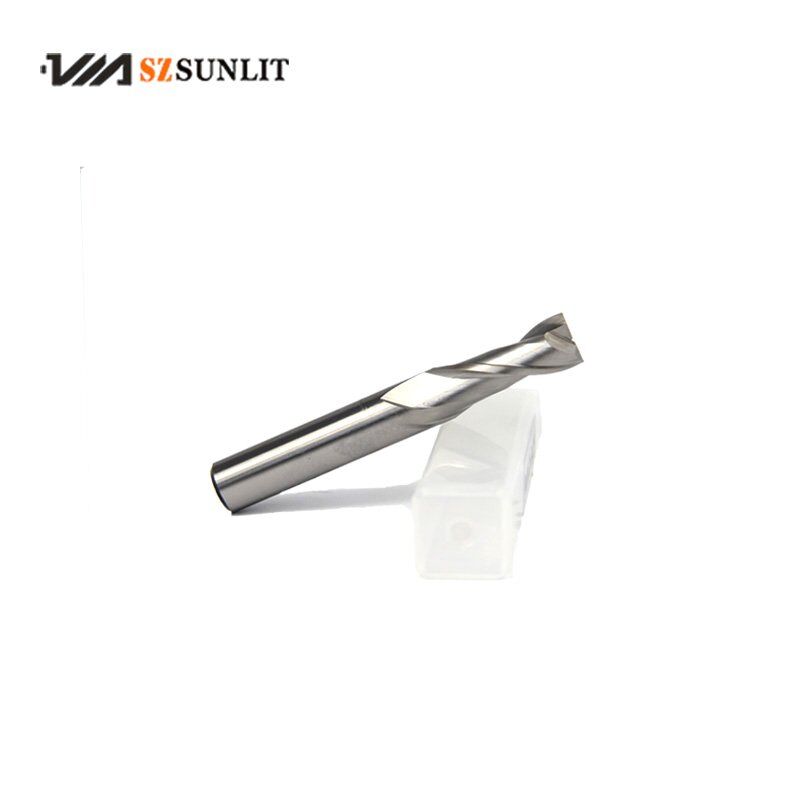

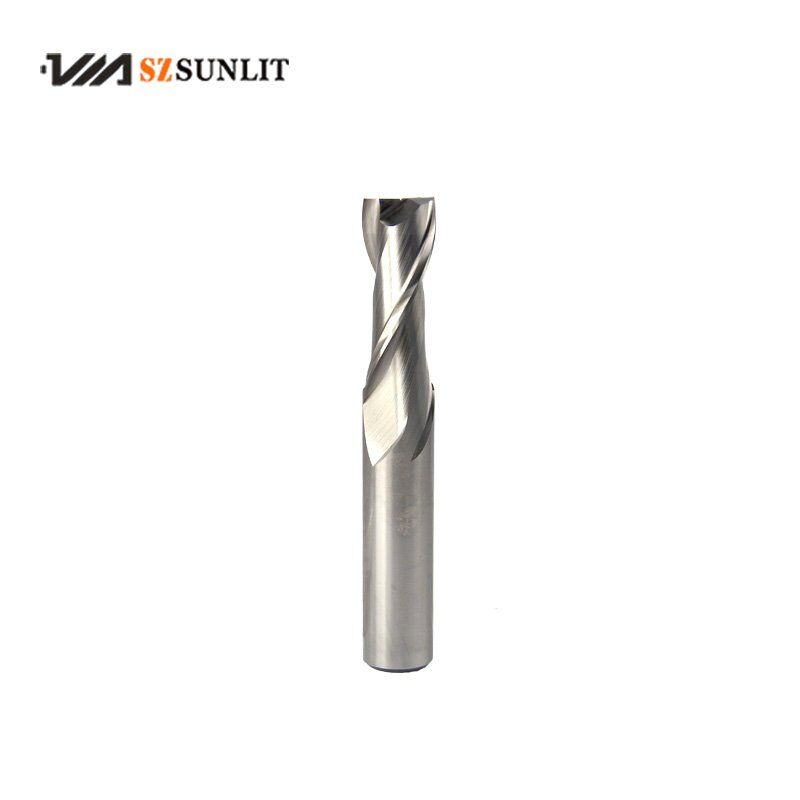

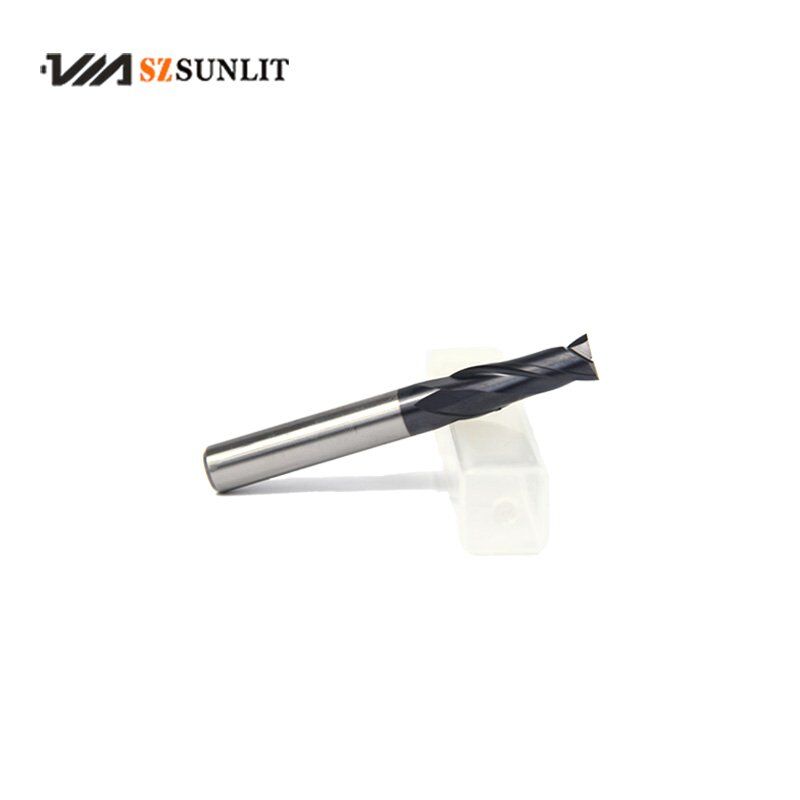

HSSCO 8% 2F END MILLS Slot Drills Tools
| Brand | SZSUNLIT |
|---|---|
| Material | HSSM42 ( Materials from Austria/Japan) |
| Coating | None, TIALN, TICN, TIN |
| Application | CNC machining center, milling machine |
| OEM&ODM | Availble |
HSSCO 8% 2F END MILLS Slot Drills Tools
Best Suitable materials :Carbon Steel, Alloy
Also can work for Prehardened Steel HRC30-40, aluminum
Features:
1. These end mills are furnished as regular with right-hand cutting and right-hand helical flutes
2. These are designed for slotting,drilling,pocketing and general-purpose operation
3. To do metal cutting for general Steels,Brass etc.
4. Other shank design on your request
| TOLERANCE RANGE | |
| FLUTE DIA. | 0～-0.02mm |
| SHANK DIA. | h6 |
| ITEM NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STE2101010 | 1 | 6 | 2.5 | 55 |
| STE2101015 | 1.5 | 6 | 4 | 55 |
| STE2101020 | 2 | 6 | 6 | 55 |
| STE2101025 | 2.5 | 6 | 7 | 55 |
| STE2101030 | 3 | 6 | 10 | 55 |
| STE2101035 | 3.5 | 6 | 12 | 55 |
| STE2101040 | 4 | 6 | 12 | 55 |
| STE2101045 | 4.5 | 6 | 15 | 60 |
| STE2101050 | 5 | 6 | 15 | 60 |
| STE2101055 | 5.5 | 6 | 15 | 60 |
| STE2101060 | 6 | 6 | 15 | 60 |
| STE2101065 | 6.5 | 8 | 15 | 65 |
| STE2101070 | 7 | 8 | 20 | 70 |
| STE2101075 | 7.5 | 8 | 20 | 70 |
| STE2101080 | 8 | 8 | 20 | 70 |
| STE2101085 | 8.5 | 10 | 25 | 80 |
| STE2101090 | 9 | 10 | 25 | 80 |
| STE2101095 | 9.5 | 10 | 25 | 80 |
| STE2101100 | 10 | 10 | 25 | 80 |
| STE2101105 | 10.5 | 12 | 30 | 90 |
| STE2101110 | 11 | 12 | 30 | 90 |
| STE2101115 | 11.5 | 12 | 30 | 90 |
| STE2101120 | 12 | 12 | 30 | 90 |
| STE2101130 | 13 | 12 | 35 | 95 |
| STE2101140 | 14 | 12 | 35 | 95 |
| STE2101150 | 15 | 16 | 40 | 105 |
| STE2101160 | 16 | 16 | 40 | 105 |
| STE2101170 | 17 | 16 | 40 | 105 |
| STE2101180 | 18 | 16 | 40 | 105 |
| STE2101190 | 19 | 20 | 45 | 115 |
| STE2101200 | 20 | 20 | 45 | 115 |
| STE2101210 | 21 | 20 | 45 | 115 |
| STE2101220 | 22 | 20 | 45 | 115 |
| STE2101230 | 23 | 25 | 50 | 125 |
| STE2101240 | 24 | 25 | 50 | 125 |
| STE2101250 | 25 | 25 | 50 | 125 |
| STE2101260 | 26 | 25 | 50 | 125 |
| STE2101270 | 27 | 25 | 50 | 125 |
| STE2101280 | 28 | 25 | 55 | 125 |
| STE2101290 | 29 | 25 | 55 | 125 |
| STE2101300 | 30 | 25 | 55 | 125 |
| STE2101310 | 31 | 32 | 60 | 145 |
| STE2101320 | 32 | 32 | 60 | 145 |
| STE2102030 | 3 | 6 | 15 | 60 |
| STE2102040 | 4 | 6 | 20 | 65 |
| STE2102050 | 5 | 6 | 25 | 70 |
| STE2102060 | 6 | 6 | 25 | 70 |
| STE2102070 | 7 | 8 | 35 | 85 |
| STE2102080 | 8 | 8 | 35 | 85 |
| STE2102090 | 9 | 10 | 45 | 100 |
| STE2102100 | 10 | 10 | 45 | 100 |
| STE2102120 | 12 | 12 | 55 | 115 |
| STE2102140 | 14 | 12 | 55 | 115 |
| STE2102160 | 16 | 16 | 65 | 130 |
| STE2102180 | 18 | 16 | 65 | 130 |
| STE2102200 | 20 | 20 | 75 | 145 |
| STE2102220 | 22 | 20 | 75 | 145 |
| STE2102250 | 25 | 25 | 90 | 165 |
| STE2102260 | 26 | 25 | 90 | 165 |
| STE2102280 | 28 | 25 | 90 | 165 |
| STE2102300 | 30 | 25 | 90 | 165 |
