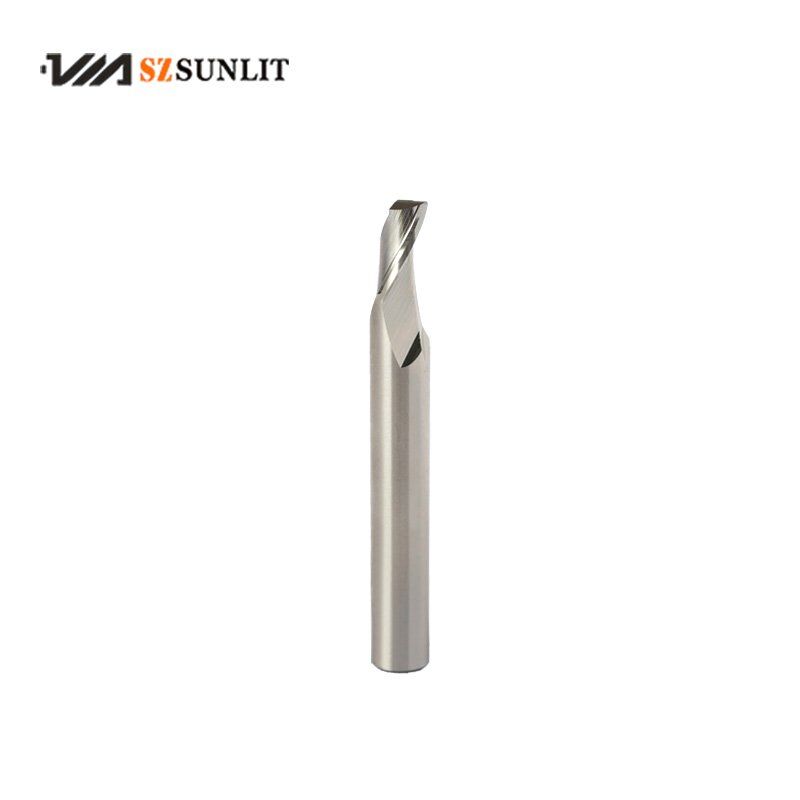

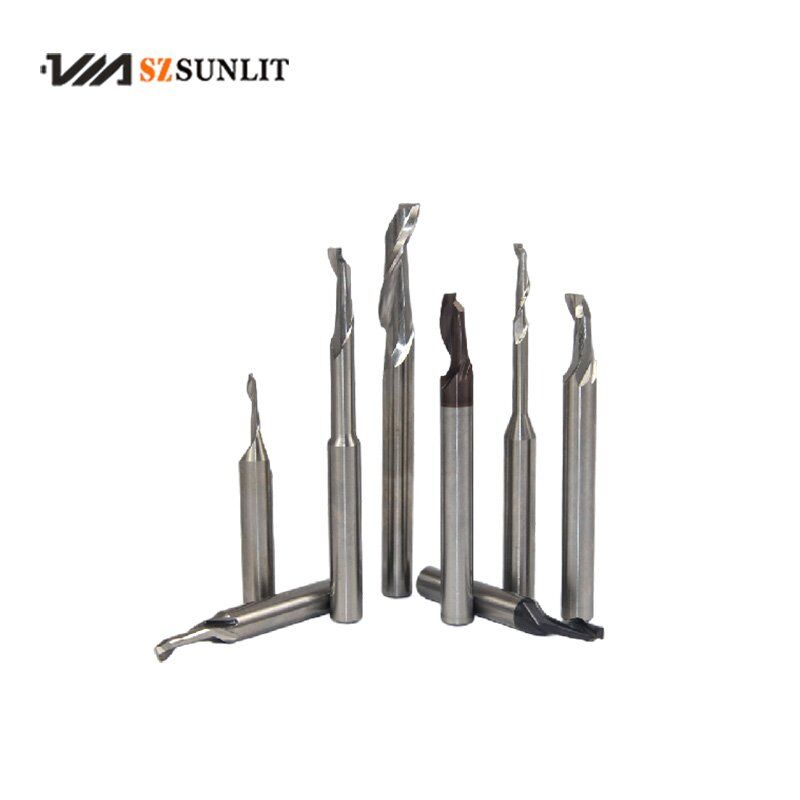

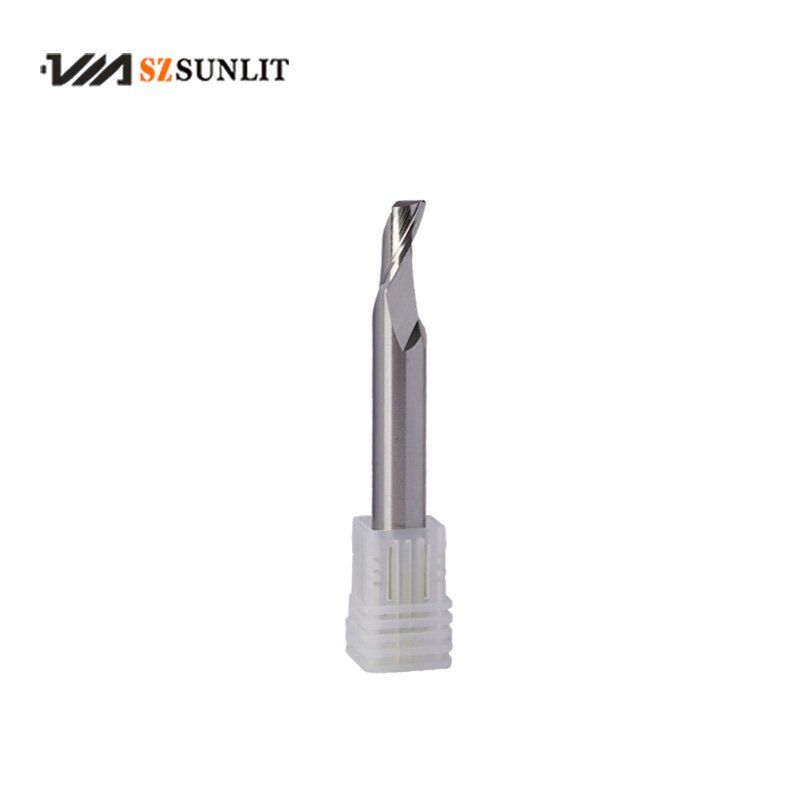

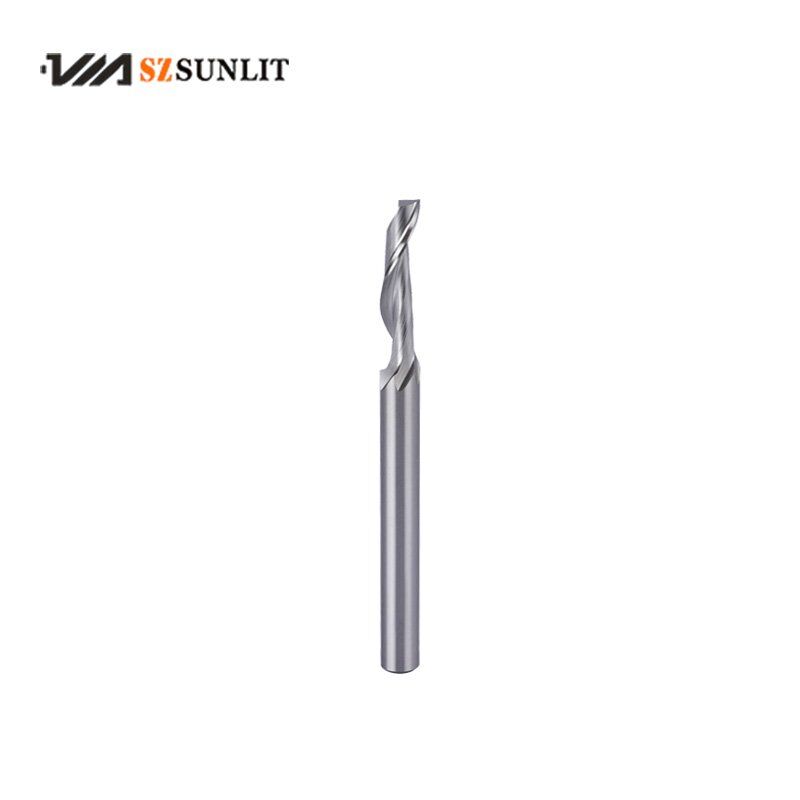

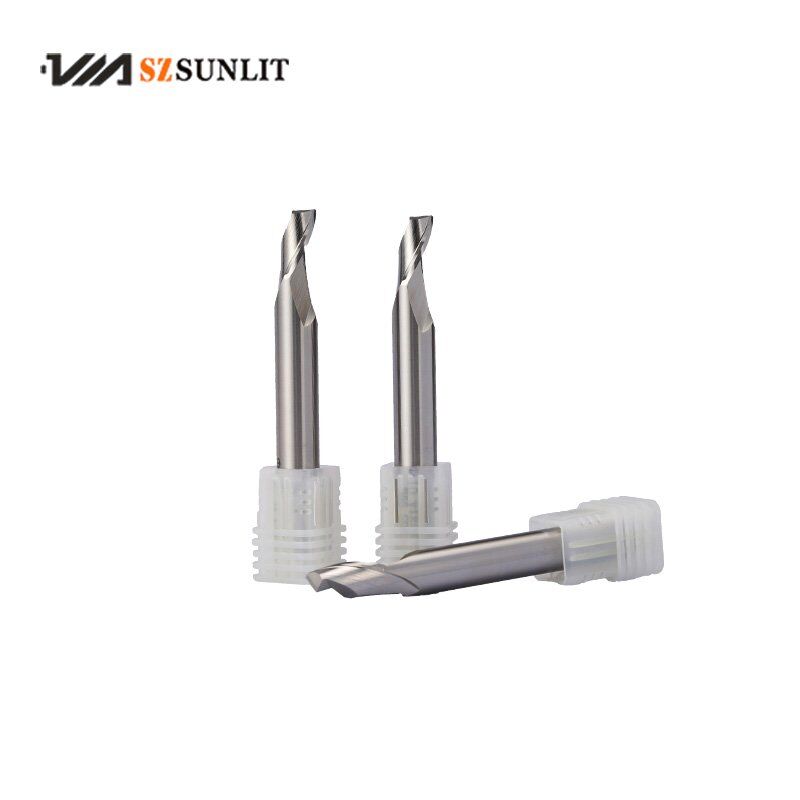

HSSCO 1F END MILLS Milling Tools
| Brand | SZSUNLIT |
|---|---|
| Material | HSSM42 ( Materials from Austria/Japan) |
| Coating | DLC, None |
| Application | CNC machining center, milling machine |
| OEM&ODM | Availble |
HSSCO 1F END MILLS Milling Tools
Best Suitable materials : Aluminum
Also can work for carbon steel, alloy stee
Features:
1. These end mills are furnished as regular with right-hand cutting and right-hand helical flutes
2. These are designed for slotting,drilling,pocketing and general-purpose operation
3. To do metal cutting for general Steels,Brass etc.
4. Other shank design on your request
| TOLERANCE RANGE | |
| FLUTE DIA. | 0～-0.05mm |
| SHANK DIA. | h6 |
| ITEM NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STE110103012060 | 3 | 8 | 12 | 60 |
| STE110104012060 | 4 | 8 | 12 | 60 |
| STE110105014060 | 5 | 8 | 14 | 60 |
| STE110105016080 | 5 | 8 | 16 | 80 |
| STE110105014100 | 5 | 8 | 40 | 100 |
| STE110106014060 | 6 | 8 | 14 | 60 |
| STE110106014080 | 6 | 8 | 14 | 80 |
| STE110107014060 | 7 | 8 | 14 | 60 |
| STE110108014080 | 8 | 8 | 14 | 80 |
| STE110108020100 | 8 | 8 | 20 | 100 |
| STE110108030100 | 8 | 8 | 30 | 100 |
| STE110108040100 | 8 | 8 | 40 | 100 |
| STE110110014080 | 10 | 8 | 14 | 80 |
| STE110310030100 | 10 | 8 | 30 | 100 |
| STE110410030100 | 10 | 10 | 30 | 100 |
| STE110204014080 | 4 | 8 | 14(35) | 80 |
| STE110204016090 | 4 | 8 | 16(45) | 90 |
| STE110205016080 | 5 | 8 | 16(35) | 80 |
| STE110205016090 | 5 | 8 | 16(45) | 90 |
| STE110205018100 | 5 | 8 | 18(35) | 100 |
| STE110205025100 | 5 | 8 | 25(55) | 100 |
| STE110106016080 | 6 | 8 | 16(35) | 80 |
| STE110106016090 | 6 | 8 | 16(45) | 90 |
| STE110106018100 | 6 | 8 | 18(35) | 100 |
| STE110308030100 | 8 | 8 | 30(70) | 100 |
| STE110308014120 | 8 | 8 | 14(90) | 120 |
| STE110210030100 | 10 | 8 | 30(70) | 100 |
| STE110210014120 | 10 | 8 | 14(95) | 120 |
