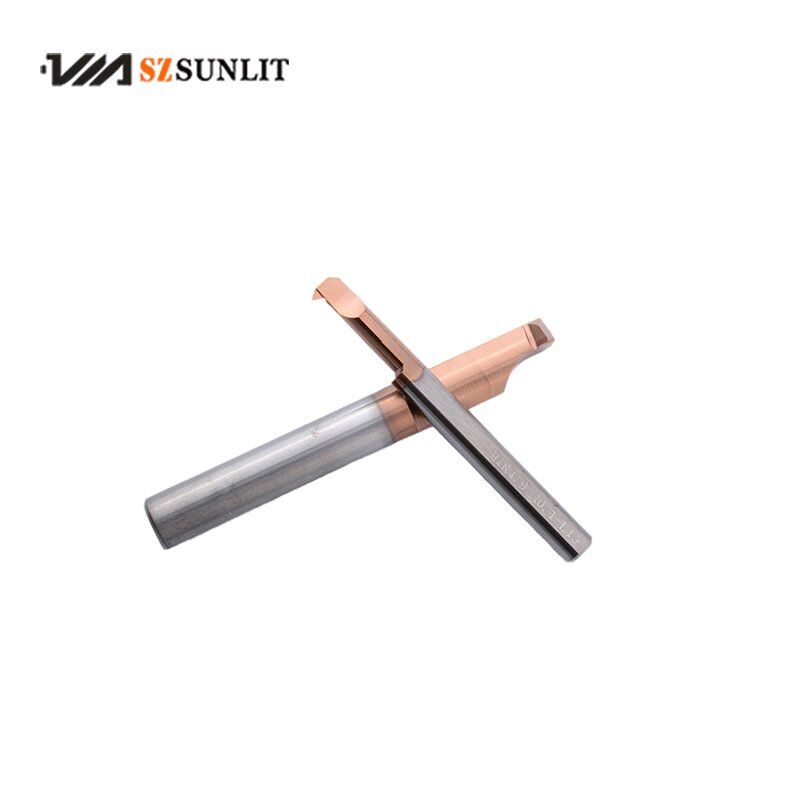

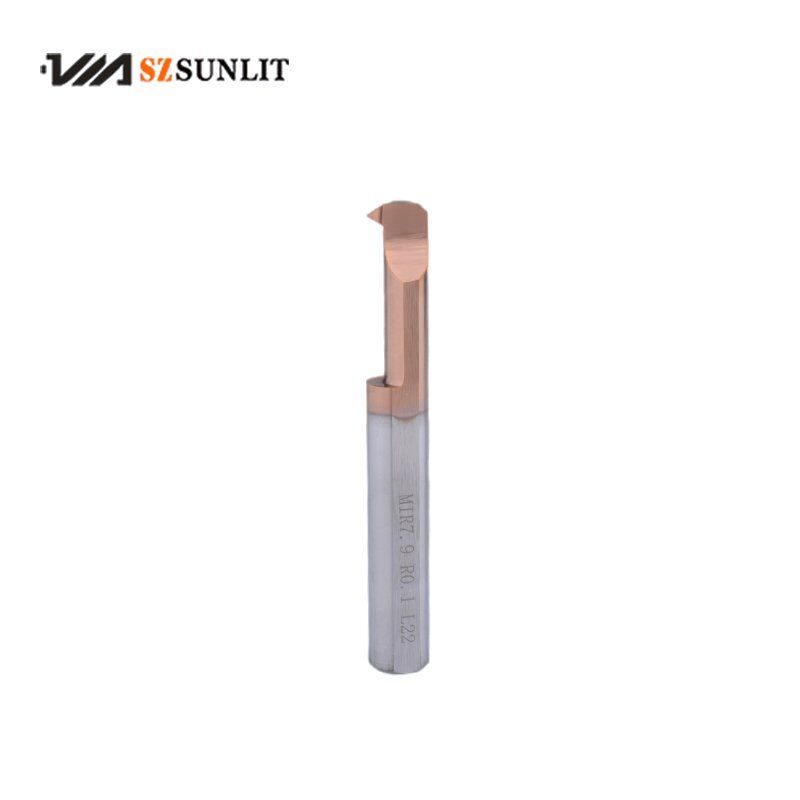

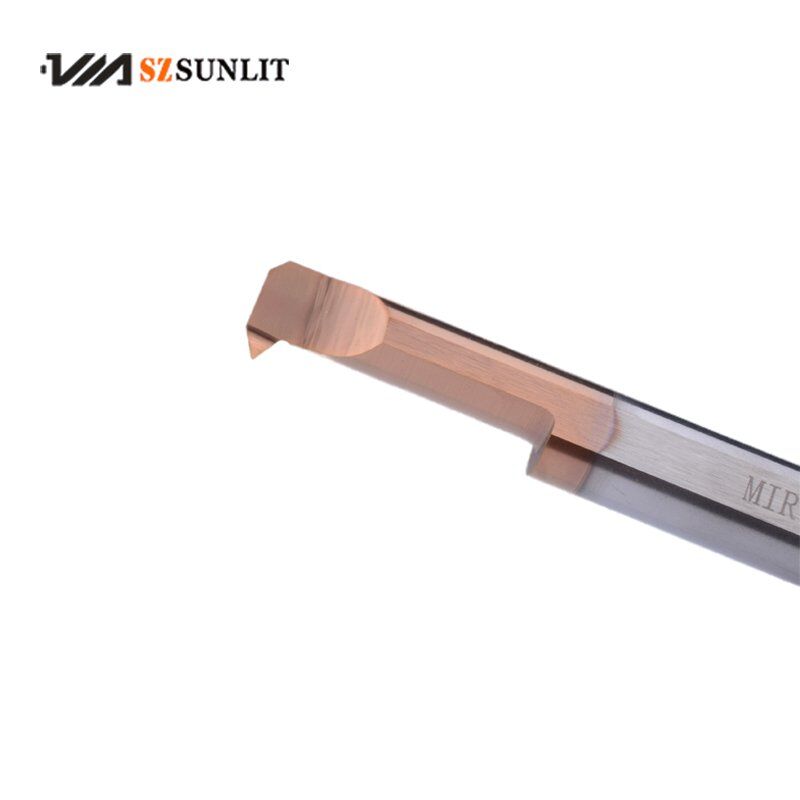

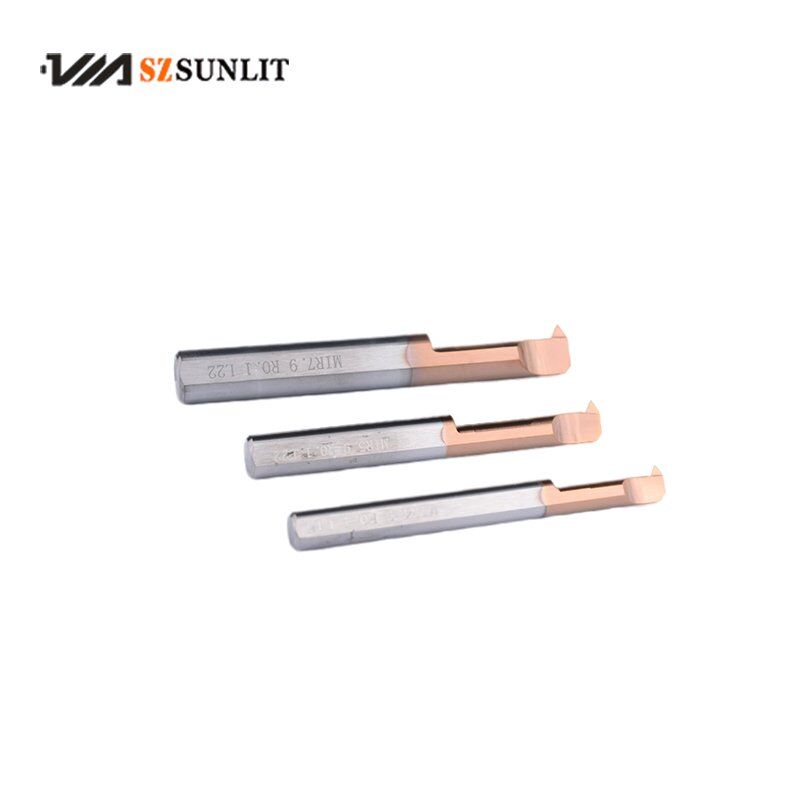

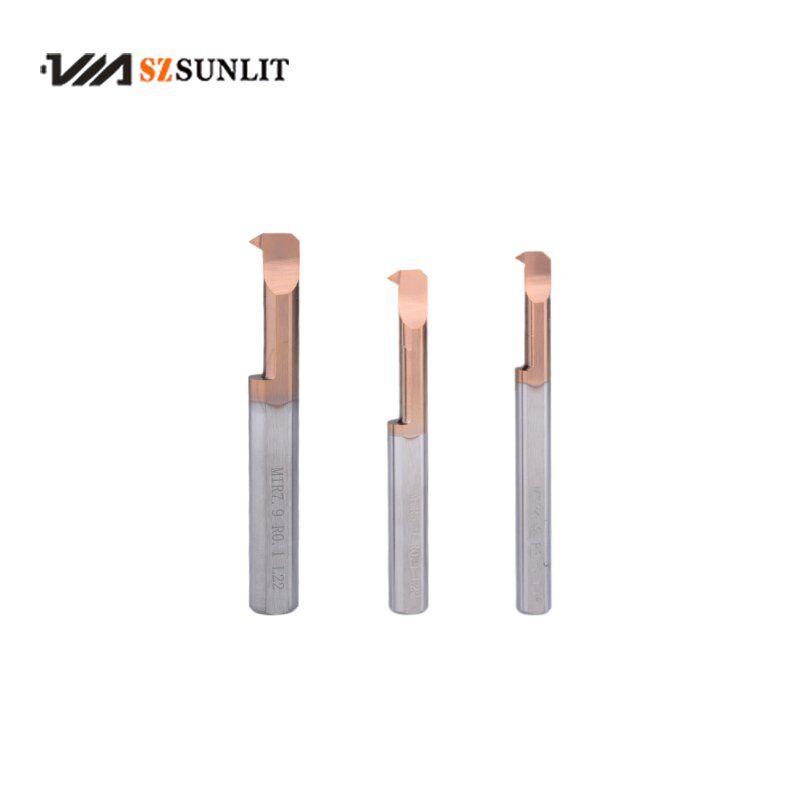

Carbide Small Hole thread turning tools internal thread cutter
| Mode | STC611 |
|---|---|
| Brand | SZSUNLIT |
| Material | Solid Carbide ( Materials from China/Taiwan/Japan) |
| Coating | ALTIN, naNO, TIALSIN |
| Hardness | HRC45/55/65 |
| Application | CNC machining center |
| OEM&ODM | Availble |
Carbide Small Hole thread turning tools internal thread cutter
Best Suitable materials :
Aluminum alloy, Stainless steel, Steel #45, Cast iron,Alloy steel, Tool steel ect.
Features:
1. Designed for boring hole of Aluminum alloy, Stainless steel, Steel #45, Cast iron,Alloy steel, Tool steel ect.
2. Excellent surface finishes with sharp cutting edges
3. Special design of tip
4. Excellent chip removal and wear-resistance
| Item NO. | Flute Dia./mm | Corner | Shank Dia./mm | Pitch | Length below shank/mm | OAL/mm |
|---|---|---|---|---|---|---|
| STC611014050 | 1.4 | 0.03 | 4 | 0.3-0.4 | 4 | 50 |
| STC611019050 | 1.9 | 0.03 | 4 | 0.3-0.5 | 6 | 50 |
| STC611024050 | 2.4 | 0.03 | 4 | 0.3-0.6 | 7 | 50 |
| STC611029050 | 2.9 | 0.05 | 4 | 0.5-0.8 | 10 | 50 |
| STC611039050 | 3.9 | 0.05 | 4 | 0.5-1.0 | 12 | 50 |
| STC611049050 | 4.9 | 0.1 | 5 | 0.8-1.25 | 15 | 50 |
| STC611059050 | 5.9 | 0.1 | 6 | 0.8-1.5 | 22 | 50 |
| STC611079060 | 7.9 | 0.1 | 8 | 1.0-2.0 | 22 | 60 |
| Remark: production solution will be offered based on your working condition.Special sizes and design can be customized as you request | ||||||
