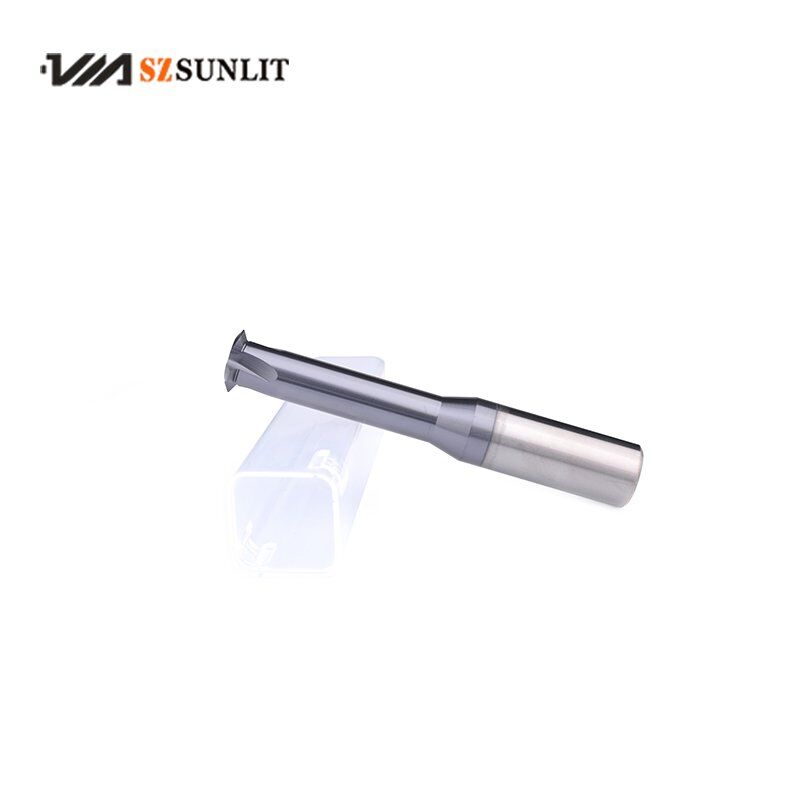

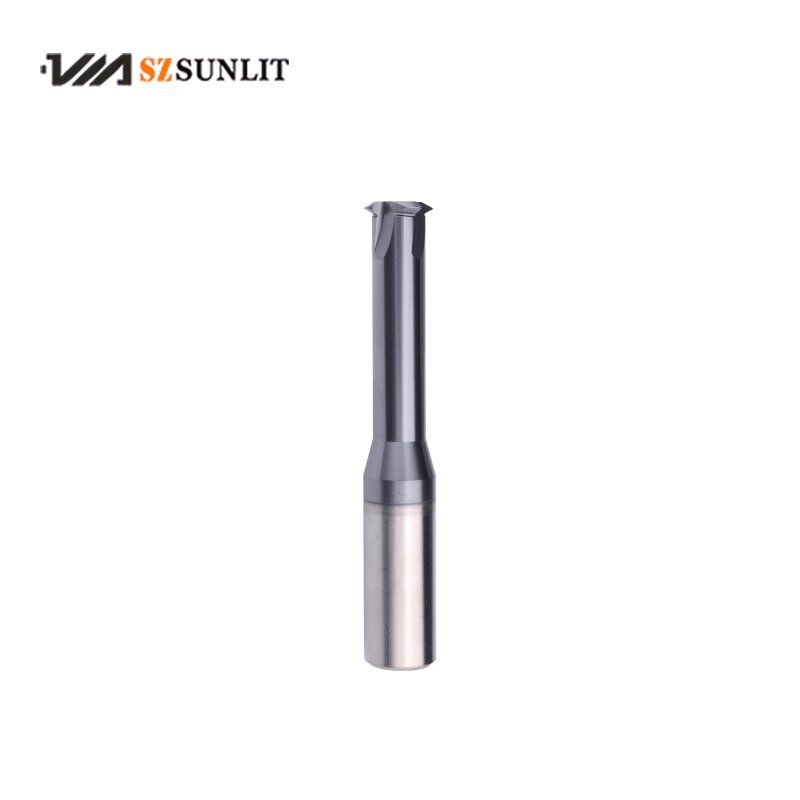

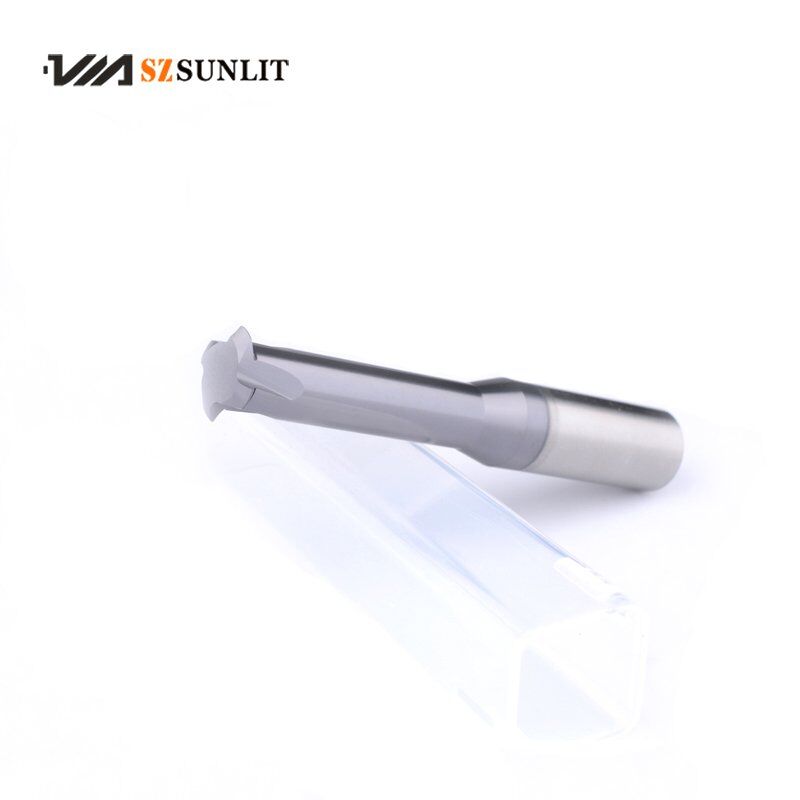

Carbide Single Pitch Thread End Mills P30° Taper
| Brand | SZSUNLIT |
|---|---|
| Material | Solid Carbide ( Materials from China/Taiwan) |
| Coating | ALTIN, Tac, TIALN |
| Hardness | HRC55-60 |
| Flute | Multi |
| Type of Flute | up spiral |
| Helix Angle | 15° |
| Application | CNC Process |
| OEM&ODM | Availble |
Carbide Single Pitch Thread End Mills P30° Taper
Suitable materials :
Aluminum, copper, cast iron, stainless steel, alloy steel
Tool steel, titanium alloy, heat-treated die steel, etc
Features:
1. A thread end mill can implement the combined functions of drills, taps and chamfering bits
2. Fully ground arc blade combination
3. Sharp blade and easy to cut threads even if exotic materials like Nickel, Titanium or their alloys
4. Excellent wear-resistance
| Item NO. | Size | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm | |
|---|---|---|---|---|---|---|
| STC513060050 | TR8*1.5 | 6 | 6 | 20 | 50 | |
| STC513060050 | TR9*1.5 | 6 | 6 | 20 | 50 | |
| STC513061050 | TR9*2.0 | 6.4 | 8 | 20 | 50 | |
| STC513061050 | TR10*2.0 | 6.4 | 8 | 20 | 50 | |
| STC513061050 | TR11*2.0 | 6.4 | 8 | 20 | 50 | |
| STC513094075 | TR12*2.0 | 9.4 | 10 | 35 | 75 | |
| STC513094075 | TR14*2.0 | 9.4 | 10 | 35 | 75 | |
| STC513094075 | TR16*2.0 | 9.4 | 10 | 35 | 75 | |
| STC513094075 | TR18*2.0 | 9.4 | 10 | 35 | 75 | |
| STC513094075 | TR20*2.0 | 9.4 | 10 | 35 | 75 | |
| STC513074060 | TR11*3.0 | 7.4 | 8 | 25 | 60 | |
| STC513074060 | TR12*3.0 | 7.4 | 8 | 25 | 60 | |
| STC513074060 | TR14*3.0 | 7.4 | 8 | 25 | 60 | |
| STC513100075 | TR14*3.0 | 10 | 10 | 35 | 75 | |
| STC513100075 | TR22*3.0 | 10 | 10 | 35 | 75 | |
| STC513100075 | TR24*3.0 | 10 | 10 | 35 | 75 | |
| STC513100075 | TR26*3.0 | 10 | 10 | 35 | 75 | |
| STC513100075 | TR28*3.0 | 10 | 10 | 35 | 75 | |
| STC513100075 | TR30*3.0 | 10 | 10 | 35 | 75 | |
| STC513110075 | TR16*4.0 | 11 | 12 | 38 | 75 | |
| STC513110075 | TR18*4.0 | 11 | 12 | 38 | 75 | |
| STC513110075 | TR20*4.0 | 11 | 12 | 38 | 75 | |
| STC513140100 | TR22*5.0 | 14 | 14 | 50 | 100 | |
| STC513140100 | TR24*5.0 | 14 | 14 | 50 | 100 | |
| STC513140100 | TR26*5.0 | 14 | 14 | 50 | 100 | |
| STC513140100 | TR28*5.0 | 14 | 14 | 50 | 100 | |
| STC513160100 | TR30*6.0 | 16 | 16 | 50 | 100 | |
| STC513160100 | TR32*6.0 | 16 | 16 | 50 | 100 | |
| STC513160100 | TR34*6.0 | 16 | 16 | 50 | 100 | |
| STC513160100 | TR36*6.0 | 16 | 16 | 50 | 100 | |
| STC513160100 | TR38*6.0 | 16 | 16 | 50 | 100 | |
| STC513160100 | TR40*6.0 | 16 | 16 | 50 | 100 | |
| STC513160100 | TR42*6.0 | 16 | 16 | 50 | 100 | |
| Remark: production solution will be offered based on your working condition.Special sizes and design can be customized as you request | ||||||
