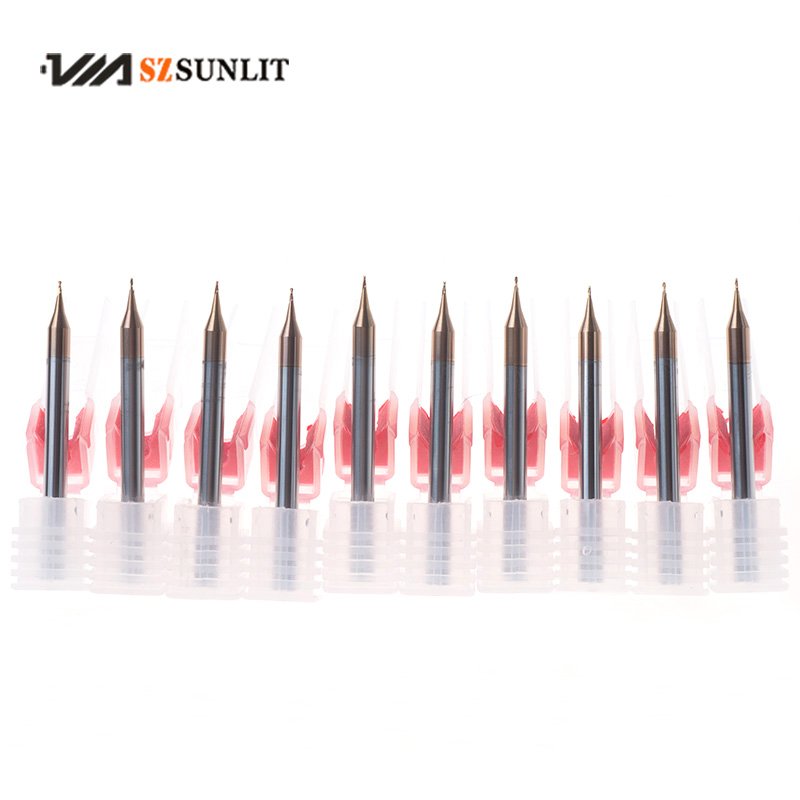

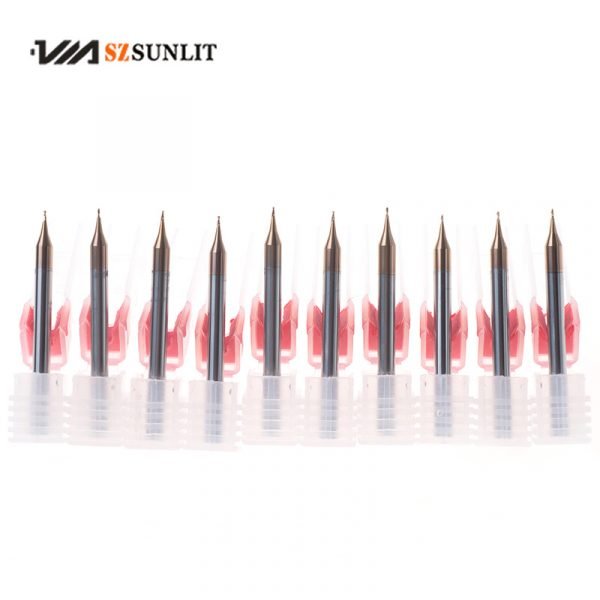

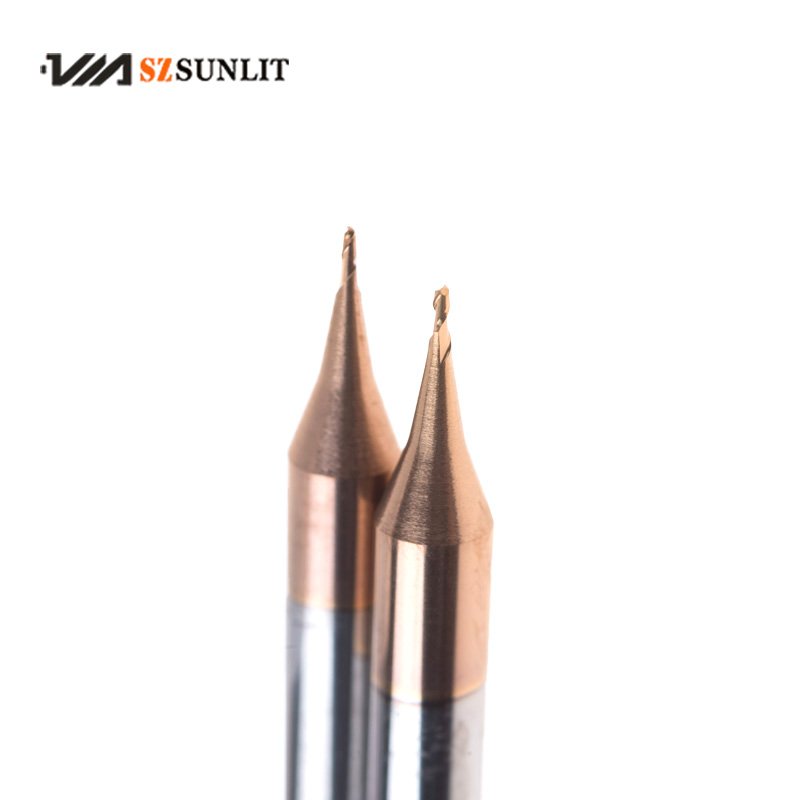

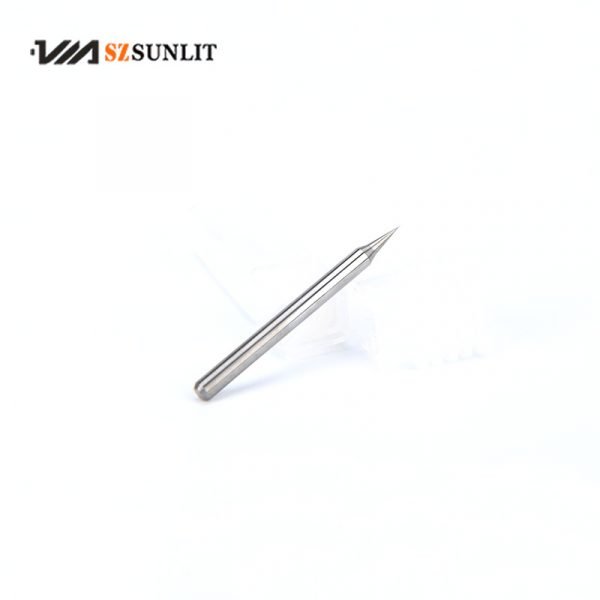

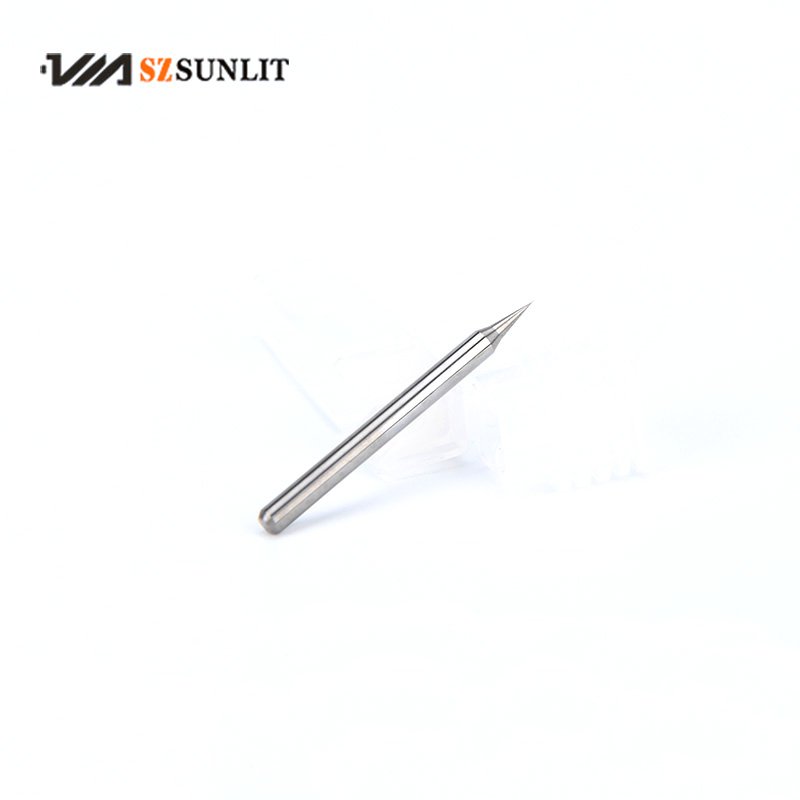

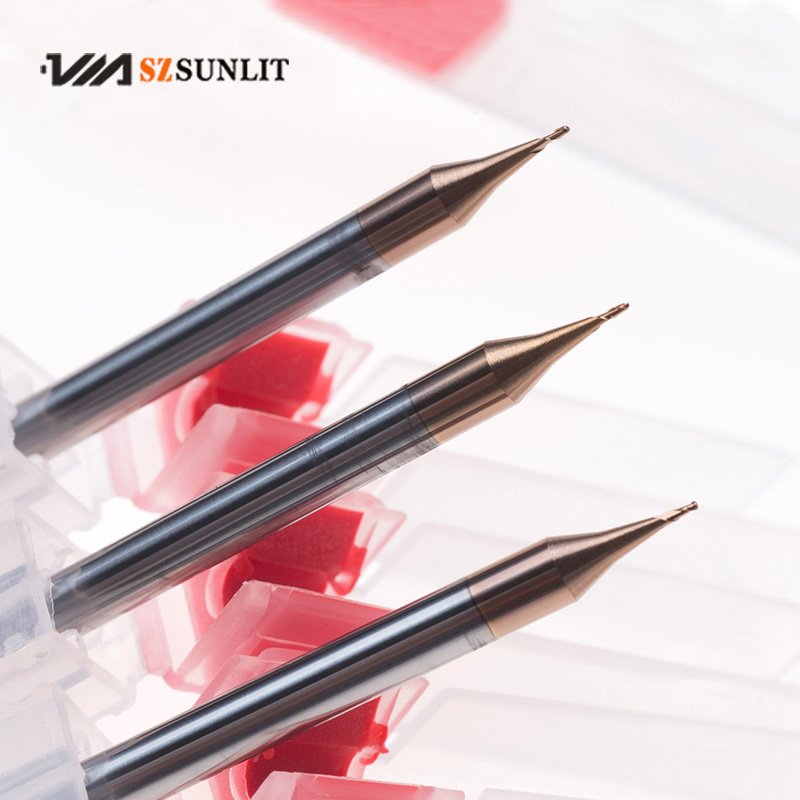

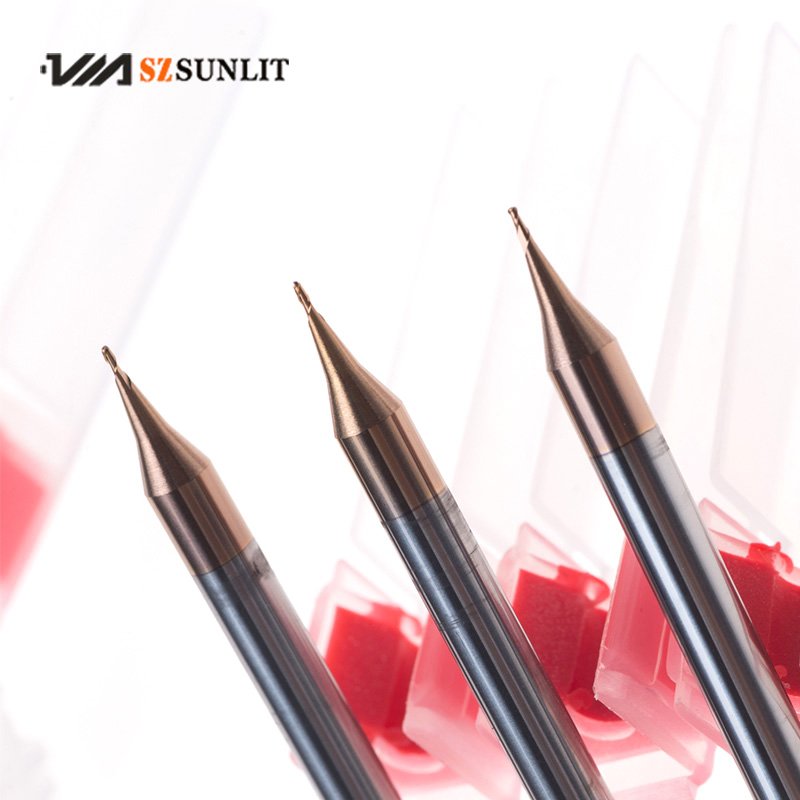

Carbide Micro End Mills
| Brand | SZSUNLIT |
|---|---|
| Material | Solid Carbide ( Materials from Sweden) |
| Coating | naNO-AS, Tac |
| Hardness | HRC65 |
| Flute | 2F, Ball Nose |
| Type of Flute | up spiral |
| Helix Angle | 45° |
| Tolerance | 0.003um |

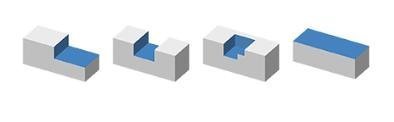

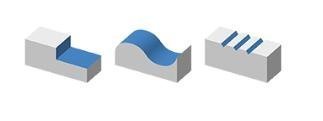

| Application | CNC Process, Milling tool |
| OEM&ODM | Availble |
Carbide Micro End Mills
Best Suitable materials : Die Steel (below HRC65)
could also suitable for below materials:
1. Stainless Steel
2. Titanium alloy
Features:
1. Designed for high speed machining die steel, stainless steel and titanium alloy
2. Excellent surface finishes
3. Super high precision
4. Excellent wear-resistance
| Item NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STC2300005 | 0.05 | 3.175 | 0.05/0.1 | 50 |
| STC2300075 | 0.075 | 3.175 | 0.075/0.15 | 50 |
| STC2300100 | 0.1 | 4 | 0.1/0.2/0.3/0.4/0.5 | 50 |
| STC2300200 | 0.2 | 4 | 0.2/0.4/0.6/0.8/1 | 50 |
| STC2300300 | 0.3 | 4 | 0.3/0.6/0.9/1.2/1.5 | 50 |
| STC2300400 | 0.4 | 4 | 0.4/0.8/1.2/1.6/2.0 | 50 |
| STC2300500 | 0.5 | 4 | 0.5/1.0/1.5/2.0/2.5 | 50 |
| STC2300600 | 0.6 | 4 | 0.6/1.2/1.8/2.4/3.0 | 50 |
| STC2300700 | 0.7 | 4 | 0.7/1.4/2.1/2.8/3.5 | 50 |
| STC2300800 | 0.8 | 4 | 0.8/1.6/2.4/3.2/4.0 | 50 |
| STC2300900 | 0.9 | 4 | 0.9/1.8/2.7/3.6/4.5 | 50 |
| Item NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STCB2300005 | 0.05 | 3.175 | 0.05/0.1 | 50 |
| STCB2300100 | 0.1 | 4 | 0.1/0.2/0.3/0.4/0.5 | 50 |
| STCB2300150 | 0.15 | 4 | 0.15/0.3/0.45/0.6/0.75 | 50 |
| STCB2300200 | 0.2 | 4 | 0.2/0.4/0.6/0.8/1 | 50 |
| STCB2300250 | 0.25 | 4 | 0.25/0.5/0.75/1.0/1.25 | 50 |
| STCB2300300 | 0.3 | 4 | 0.3/0.6/0.9/1.2/1.5 | 50 |
| STCB2300400 | 0.4 | 4 | 0.4/0.8/1.2/1.6/2.0 | 50 |
| Remark: production solution will be offered based on your working condition.Special sizes and design can be customized as you request | ||||
