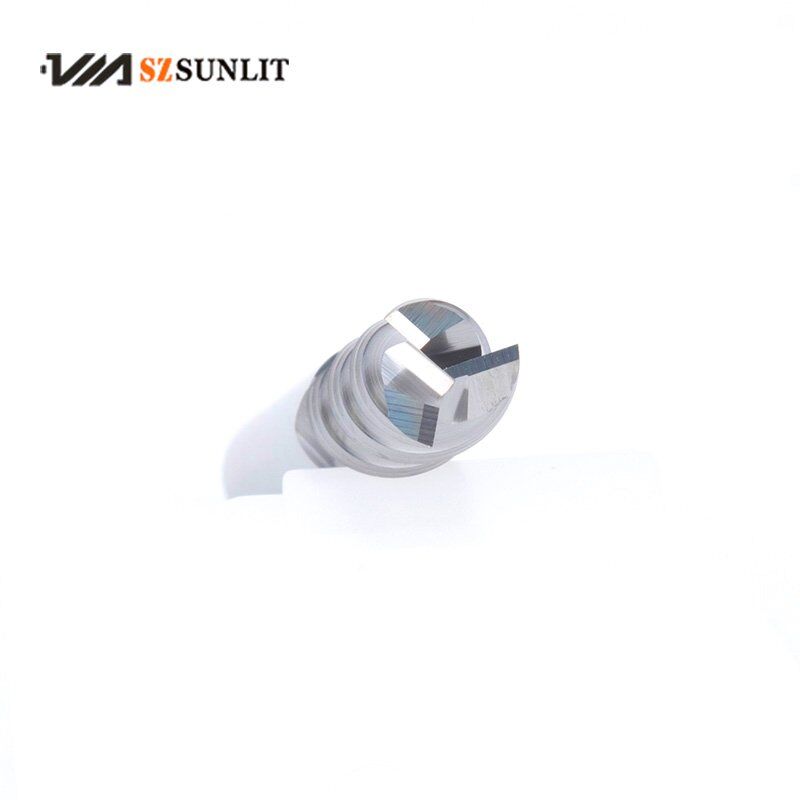

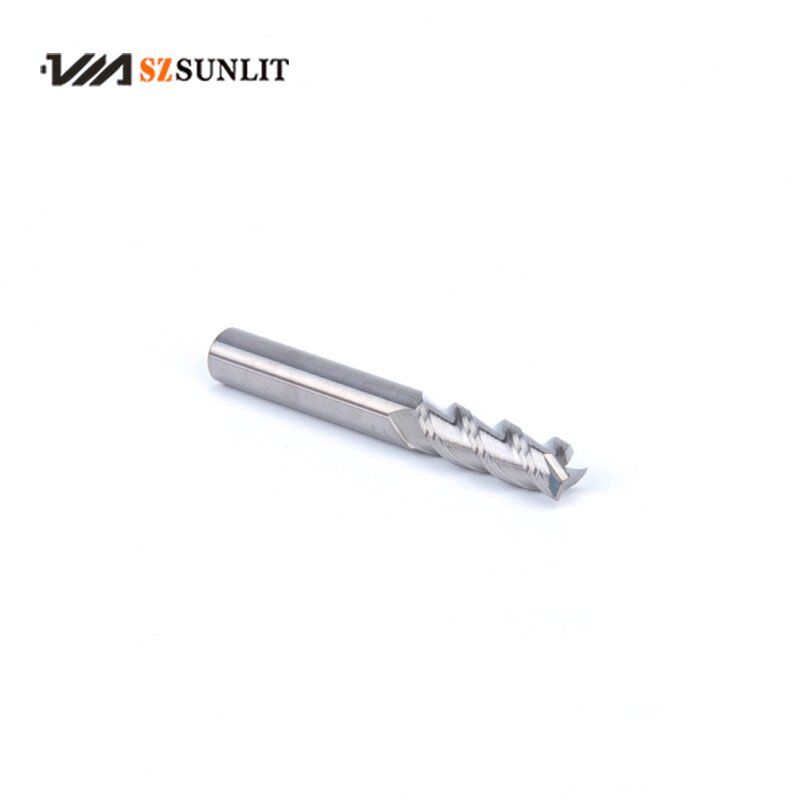

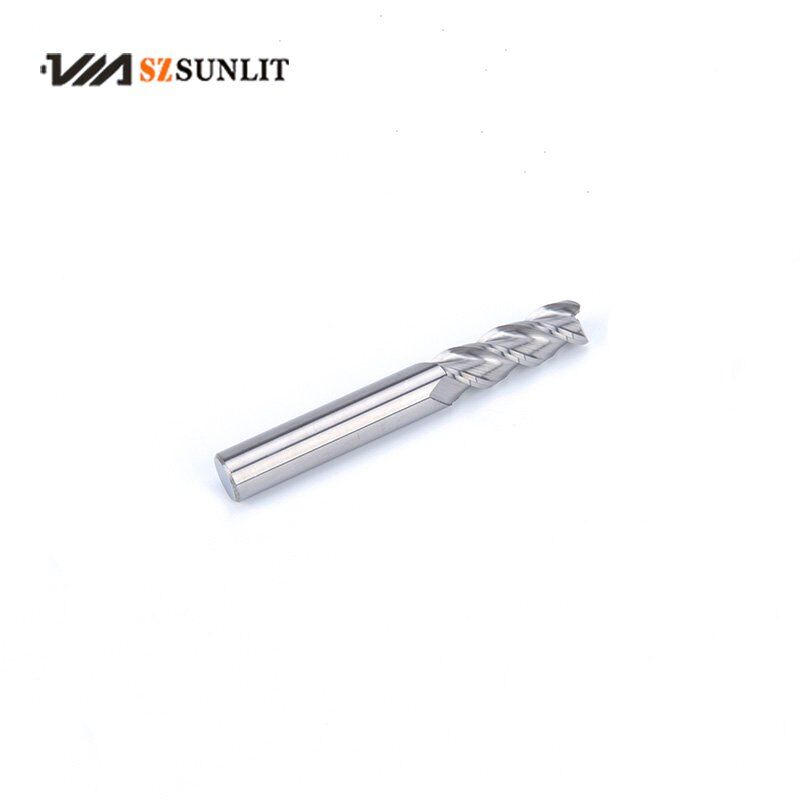

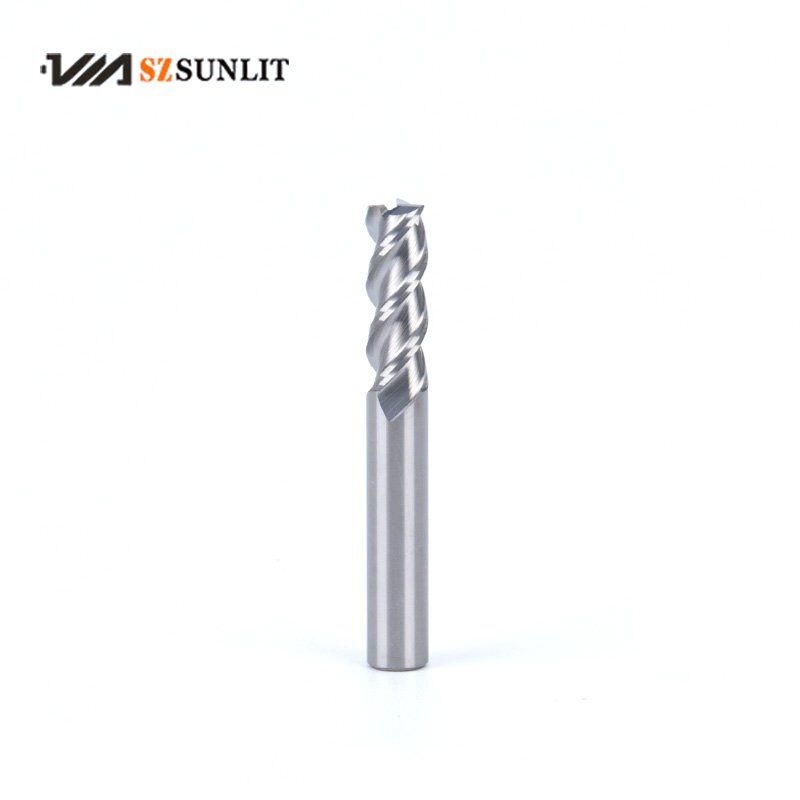

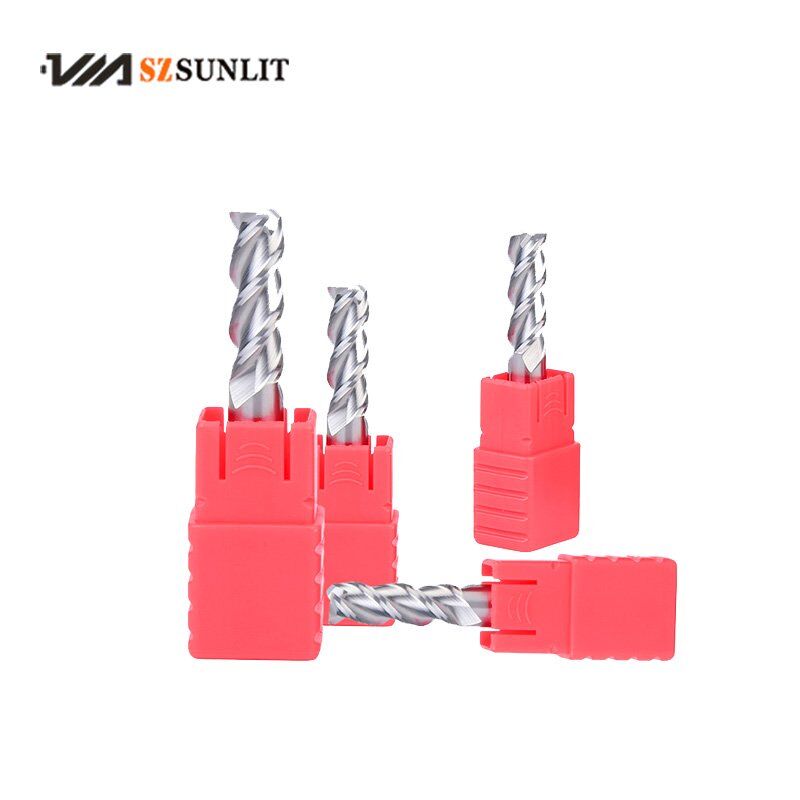

Carbide End Mills 3Flute for Aluminum
| Brand | SZSUNLIT |
|---|---|
| Material | Solid Carbide ( Materials from China/Taiwan/Japan) |
| Coating | DLC, None, Tac |
| Hardness | HRC50/55 |
| Flute | 3F |
| Type of Flute | up spiral |
| Helix Angle | 45° |
| Tolerance | -0.01-0mm, -0.02-0mm, 1-4mm, Above 6mm |
| Application | CNC Process, Milling tool |
| OEM&ODM | Availble |
Carbide End Mills 3Flute for Aluminum
Best Suitable materials : Aluminum
could also suitable for below materials:
1. Aluminum alloy
2. Non-ferrous material
Features:
1. Designed for high speed machining aluminum, aluminum alloy and non-ferrous material
2. Excellent surface finishes with mirror face of cutting edges
3. Special flute geometry eliminates vibrations
| Item NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STC31010030050 | 1 | 4 | 3 | 50 |
| STC31015045050 | 1.5 | 4 | 4.5 | 50 |
| STC31020060050 | 2 | 4 | 6 | 50 |
| STC31025070050 | 2.5 | 4 | 7 | 50 |
| STC31030080050 | 3 | 4 | 8 | 50 |
| STC31030090075 | 3 | 4 | 9 | 75 |
| STC31030120100 | 3 | 4 | 12 | 100 |
| STC31035010050 | 3.5 | 4 | 10 | 50 |
| STC31040011050 | 4 | 4 | 11 | 50 |
| STC31040012075 | 4 | 4 | 12 | 75 |
| STC31040016100 | 4 | 4 | 16 | 100 |
| STC31050013050 | 5 | 6 | 13 | 50 |
| STC31050015075 | 5 | 6 | 15 | 75 |
| STC31050020100 | 5 | 6 | 20 | 100 |
| STC31060015050 | 6 | 6 | 15 | 50 |
| STC31060020075 | 6 | 6 | 20 | 75 |
| STC31060025100 | 6 | 6 | 25 | 100 |
| STC31060030150 | 6 | 6 | 30 | 150 |
| STC31080020060 | 8 | 8 | 20 | 60 |
| STC31080025075 | 8 | 8 | 25 | 75 |
| STC31080035100 | 8 | 8 | 35 | 100 |
| STC31080040150 | 8 | 8 | 40 | 150 |
| STC31010025075 | 10 | 10 | 25 | 75 |
| STC31010040100 | 10 | 10 | 40 | 100 |
| STC31010050150 | 10 | 10 | 50 | 150 |
| STC31012030075 | 12 | 12 | 30 | 75 |
| STC31012045100 | 12 | 12 | 45 | 100 |
| STC31012055150 | 12 | 12 | 55 | 150 |
| STC31014040100 | 14 | 14 | 40 | 100 |
| STC31014060150 | 14 | 14 | 60 | 150 |
| STC31016045100 | 16 | 16 | 45 | 100 |
| STC31016060150 | 16 | 16 | 60 | 150 |
| STC31018045100 | 18 | 18 | 45 | 100 |
| STC31018070150 | 18 | 18 | 70 | 150 |
| STC31020045100 | 20 | 20 | 45 | 100 |
| STC31020070150 | 20 | 20 | 70 | 150 |
| STC3401800 | 0.125 | 0.125 | 0.375 | 1-1/2 |
| STC3405320 | 5/32 | 3/16 | 7/16 | 2 |
| STC3403160 | 3/16 | 3/16 | 7/16 | 2 |
| STC3407320 | 7/32 | 1/4 | 7/16 | 2-1/2 |
| STC3401400 | 1/4 | 1/4 | 1/2 | 2-1/2 |
| STC3409320 | 9/32 | 5/16 | 5/8 | 2-1/2 |
| STC3405160 | 5/16 | 5/16 | 13/16 | 2-1/2 |
| STC3401132 | 11/32 | 3/8 | 13/16 | 2-1/2 |
| STC3403800 | 3/8 | 3/8 | 7/8 | 1-1/2 |
| STC3401332 | 13/32 | 7/16 | 15/16 | 2-3/4 |
| STC3407160 | 7/16 | 7/16 | 1 | 2-3/4 |
| STC3411532 | 15/32 | 1/2 | 1 | 3 |
| STC3401120 | 1/2 | 1/2 | 1 | 3 |
| STC3409160 | 9/16 | 9/16 | 1-1/8 | 3-1/2 |
| STC3405800 | 5/8 | 5/8 | 1-1/4 | 3-1/2 |
| STC3403400 | 3/4 | 3/4 | 1-1/2 | 4 |
| STC3401000 | 1 | 1 | 1-1/2 | 4 |
| Remark: production solution will be offered based on your working condition.Special sizes and design can be customized as you request | ||||
