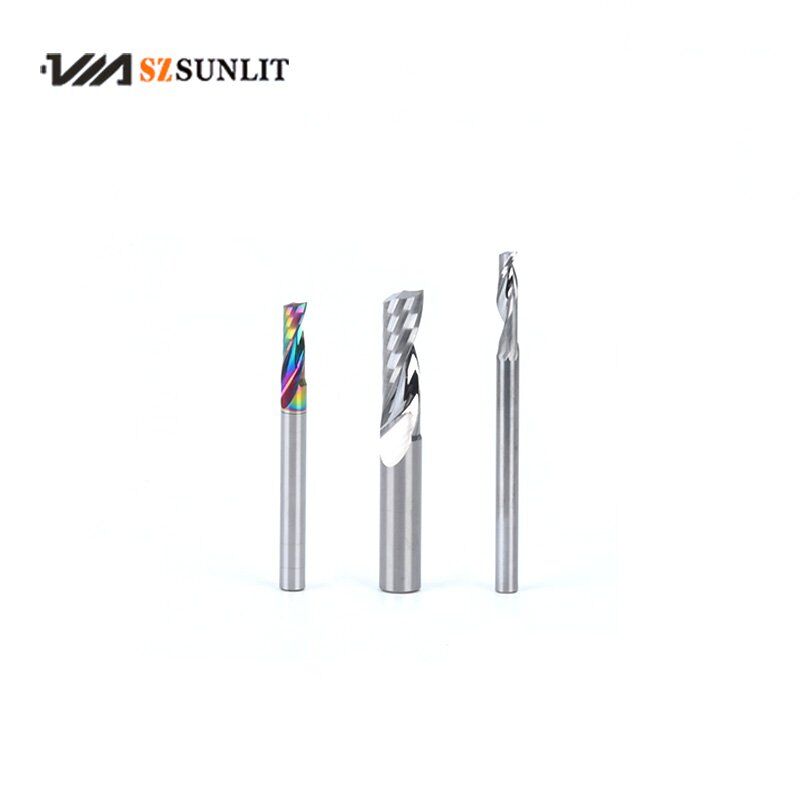

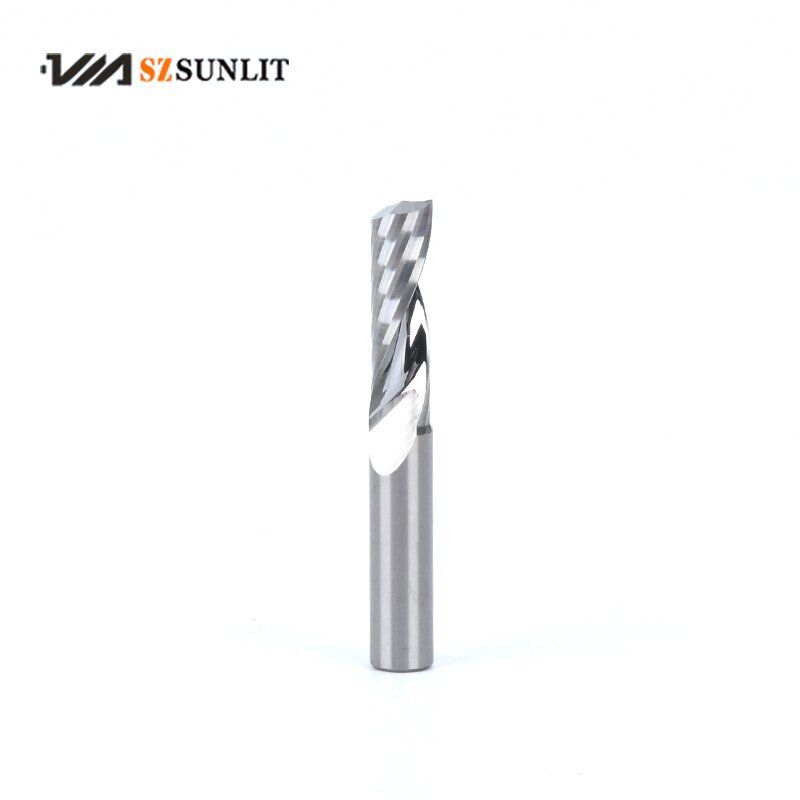

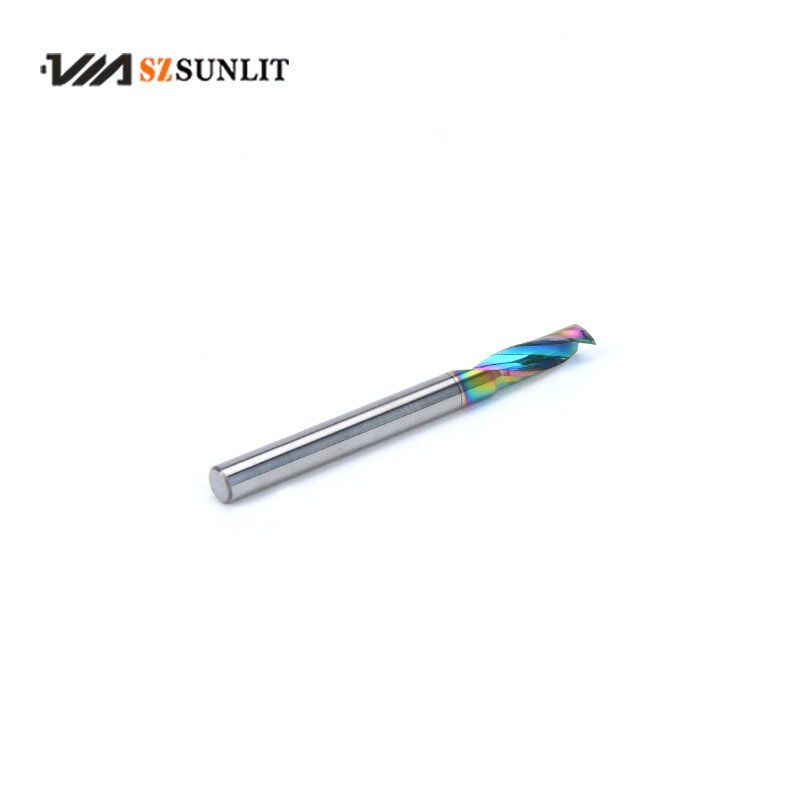

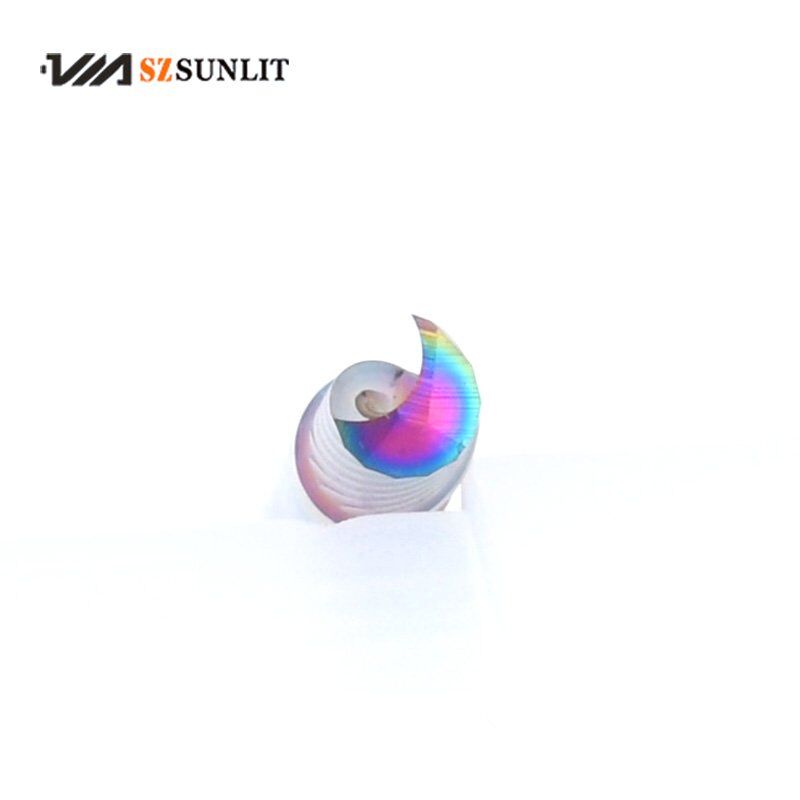

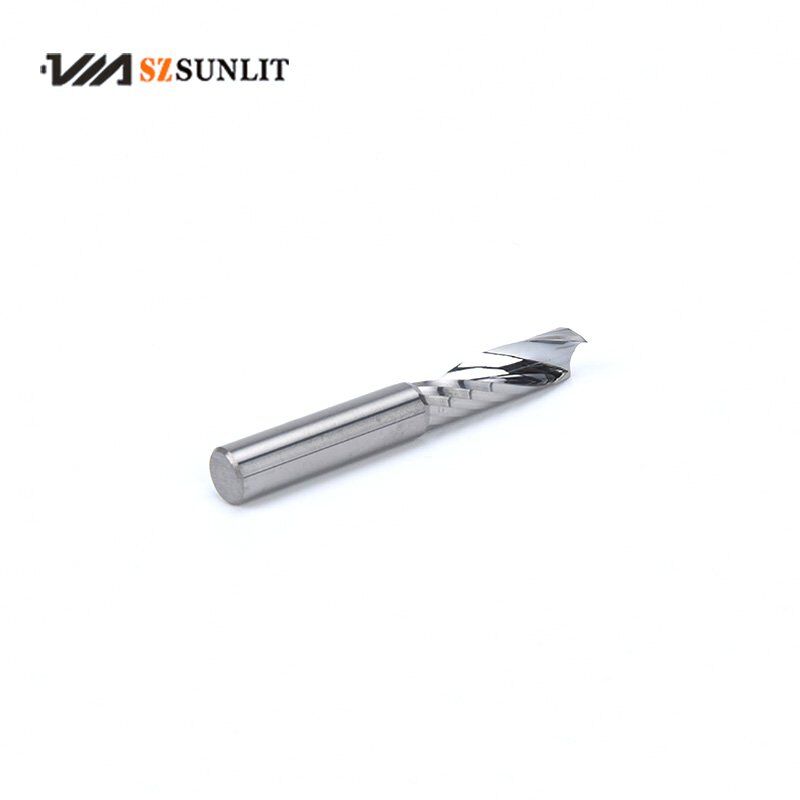

Carbide End Mills 1 Flute good for alu. and curtain wall
| Brand | SZSUNLIT |
|---|---|
| Material | Solid Carbide ( Materials from China/Taiwan/Japan/US/Germany) |
| Coating | DLC, Tac |
| Hardness | HRC45/55 |
| Flute | 1F |
| Type of Flute | spiral angle, spiral angle with keep-space, up and down spiral |
| Helix Angle | 30° |
| Tolerance | -0.01-0mm |
| Application | CNC Process, Lathe Tool, Milling tool, Wood Metal Milling Cutter |
| OEM&ODM | Availble |
Carbide End Mills 1 Flute good for alu. and curtain wall
Best Suitable materials :Aluminum
could also suitable for below materials:
1. MDF ,patticle board ,board with lagging ,log,affixed to skin panels
2. Acrylic ,PVC,resin ,plastic,chipbord,composite board ,melamine,
3. Solid wood ,native wood, plywood,lotus plate
Features:
1. Excellent combination of upper and lower blades,no burrs for up and down spiral machining
2. Sprial Angle cutting edge :1.Sharp & Durable ; 2.High Volum Chip Clearance
3. High precision grinded and polised,high abrasion resistance and temperature resistance ,good rigidity not to easy to break.
| Item NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STC1100100 | 1 | 3.175 | 2 | 38 |
| STC1100200 | 2 | 3.175 | 4 | 38 |
| STC1100300 | 3 | 3.175 | 8 | 38 |
| STC1100350 | 3.5 | 4 | 10 | 50 |
| STC1100400 | 4 | 4 | 12 | 50 |
| STC1110300 | 3 | 6 | 8 | 50 |
| STC1110350 | 3.5 | 6 | 10 | 50 |
| STC1110400 | 4 | 6 | 11 | 50 |
| STC1100450 | 4.5 | 6 | 11 | 50 |
| STC1100500 | 5 | 6 | 13 | 50 |
| STC1100550 | 5.5 | 6 | 13 | 50 |
| STC1100600 | 6 | 6 | 15 | 50 |
| STC1100650 | 6.5 | 8 | 16 | 60 |
| STC1100700 | 7 | 8 | 20 | 60 |
| STC1100750 | 7.5 | 8 | 20 | 60 |
| STC1100800 | 8 | 8 | 18 | 60 |
| STC1100850 | 8.5 | 10 | 20 | 75 |
| STC1100900 | 9 | 10 | 20 | 75 |
| STC1100950 | 9.5 | 10 | 22 | 75 |
| STC1101000 | 10 | 10 | 25 | 75 |
| STC1101100 | 11 | 12 | 30 | 75 |
| STC1101200 | 12 | 12 | 32 | 75 |
| STC1101400 | 14 | 16 | 40 | 100 |
| STC1101600 | 16 | 16 | 40 | 100 |
| STC1101800 | 18 | 20 | 40 | 100 |
| STC1102000 | 20 | 20 | 45 | 100 |
| Remark: products solution will be offered based on your working condition/market demand.Special sizes and design can be customized as you request | ||||
