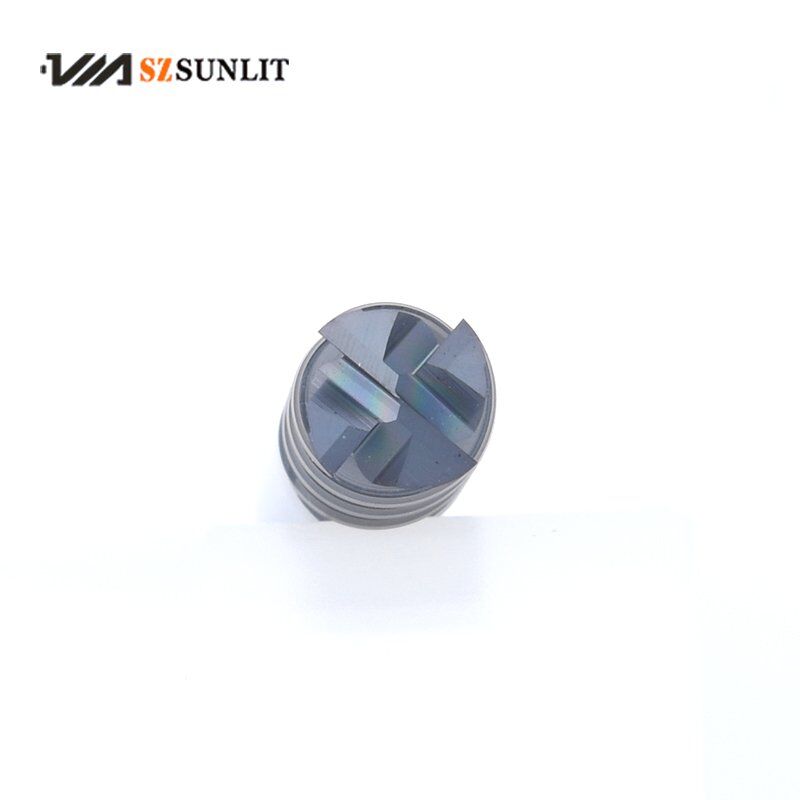

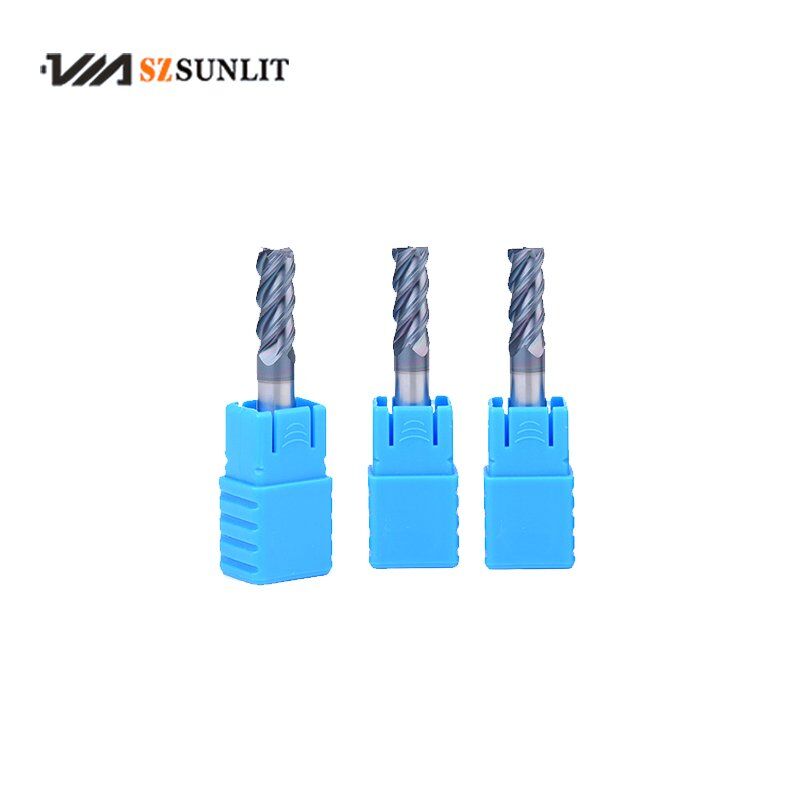

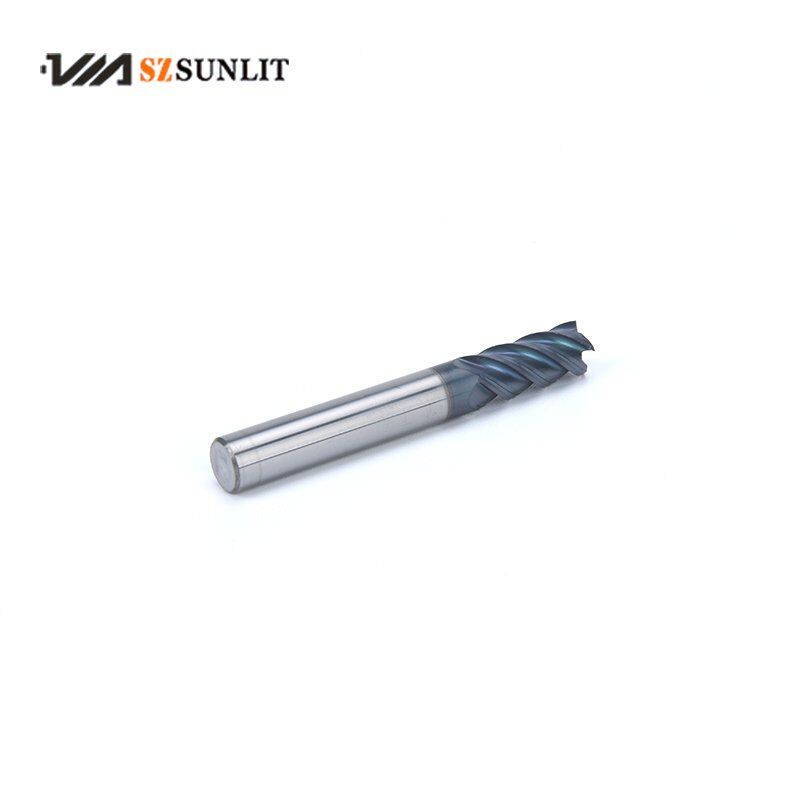

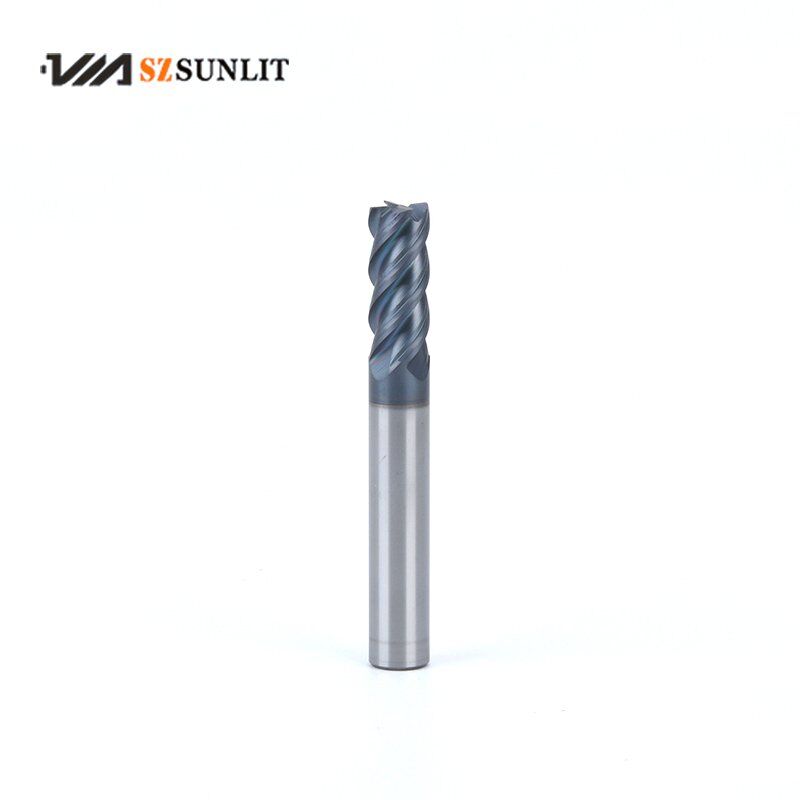

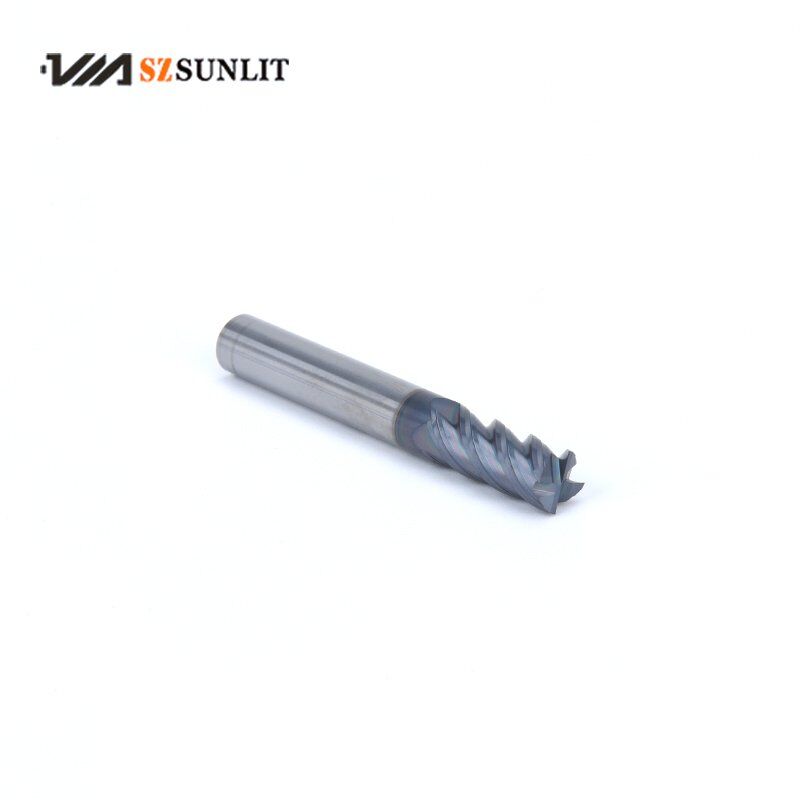

Carbide Corner Radius End Mills 4 Flute HRC50 fine working for steel
| Brand | SZSUNLIT |
|---|---|
| Place of Origin | China |
| Material | Solid Carbide ( Materials from China/Taiwan) |
| Coating | ALTIN, TIALN, TIALSIN |
| Hardness | HRC45-50 |
| Flute | 4F, Ball Nose |
| Type of Flute | up spiral |
| Helix Angle | 35° |
| Tolerance | -0.03mm-0mm |
| Suitable For | alloy steel, carton steel, hardened steel HRC40-45 |
| Application | CNC Process, Milling tool |
| OEM&ODM | Availble |
Carbide Corner Radius End Mills 4 Flute HRC50 fine working for steel
Best Suitable materials : Carbon Steel, Alloy steel
could also suitable for below materials:
1. Prehardened Steel, Hardened steels HRC40-45 (Excellent)
2. Cast Iron, Aluminum, Stainless Steel (Good)
Features:
1. Suitable for dry milling applications at high temperatures
2. Excellent high-performance end mills
3. Designed for milling of radius bottom slots,fillets and special contours
4. Designed for general purpose to carbon steel, tool steel,alloy steel and stainless steel
Packaging Details
1. One plastic pipe pack / piece, One unit/10 pieces, One Carton/500pieces for small sizes, 200 pieces for big sizes
2. Put goods enclosed with air bubble paper into box
3. Other package is accepted according to customer’s requirement
Port
Shenzhen
Lead Time :
| Quantity(Pieces) | 1 – 1000 | 1001 – 3000 | >3000 |
| Est. Time(days) | 7 | 15 | To be negotiate |
| Item NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STCC41010030050 | 1 | 4 | 2 | 50 |
| STCC41015045050 | 1.5 | 4 | 3 | 50 |
| STCC41020060050 | 2 | 4 | 4 | 50 |
| STCC41025070050 | 2.5 | 4 | 5 | 50 |
| STCC41030080050 | 3 | 4 | 6 | 50 |
| STCC41030090075 | 3 | 4 | 9 | 75 |
| STCC41030120100 | 3 | 4 | 9 | 100 |
| STCC41035010050 | 3.5 | 4 | 7 | 50 |
| STCC41040011050 | 4 | 4 | 8 | 50 |
| STCC41040012075 | 4 | 4 | 12 | 75 |
| STCC41040016100 | 4 | 4 | 12 | 100 |
| STCC41050013050 | 5 | 6 | 10 | 50 |
| STCC41050015075 | 5 | 6 | 12 | 75 |
| STCC41050020100 | 5 | 6 | 15 | 100 |
| STCC41060015050 | 6 | 6 | 12 | 50 |
| STCC41060020075 | 6 | 6 | 15 | 75 |
| STCC41060025100 | 6 | 6 | 15 | 100 |
| STCC41060030150 | 6 | 6 | 18 | 150 |
| STCC41080020060 | 8 | 8 | 16 | 60 |
| STCC41080025075 | 8 | 8 | 20 | 75 |
| STCC41080035100 | 8 | 8 | 20 | 100 |
| STCC41080040150 | 8 | 8 | 25 | 150 |
| STCC41010025075 | 10 | 10 | 20 | 75 |
| STCC41010040100 | 10 | 10 | 25 | 100 |
| STCC41010050150 | 10 | 10 | 30 | 150 |
| STCC41012030075 | 12 | 12 | 24 | 75 |
| STCC41012045100 | 12 | 12 | 30 | 100 |
| STCC41012055150 | 12 | 12 | 35 | 150 |
| STCC41014040100 | 14 | 14 | 28 | 100 |
| STCC41016045100 | 16 | 16 | 32 | 100 |
| STCC41018045100 | 18 | 18 | 36 | 100 |
| STCC41020045100 | 20 | 20 | 40 | 100 |
| Remark: production solution will be offered based on your working condition.Special sizes and design can be customized as you request | ||||
