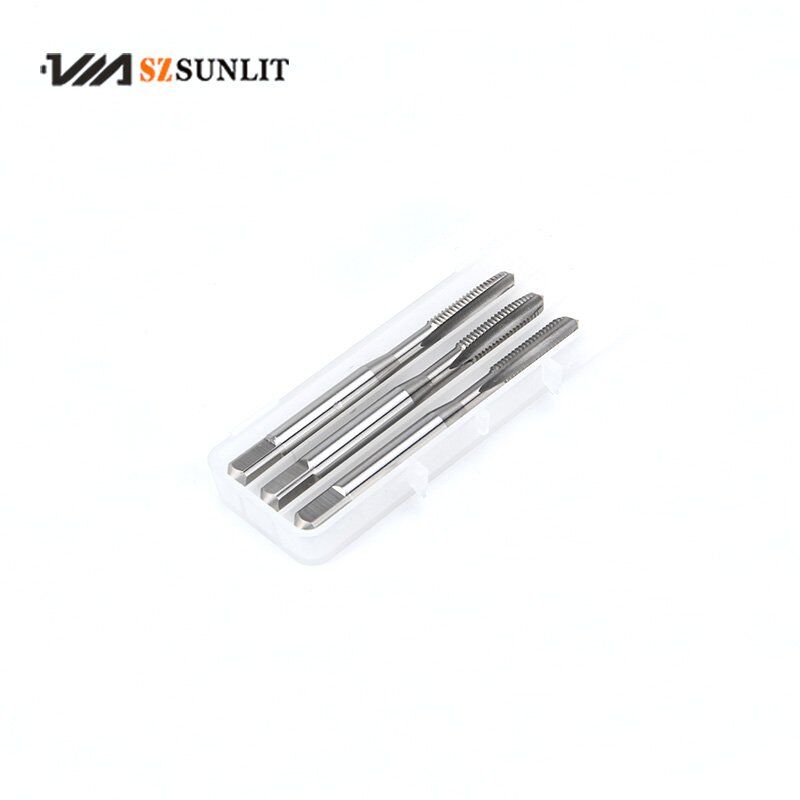

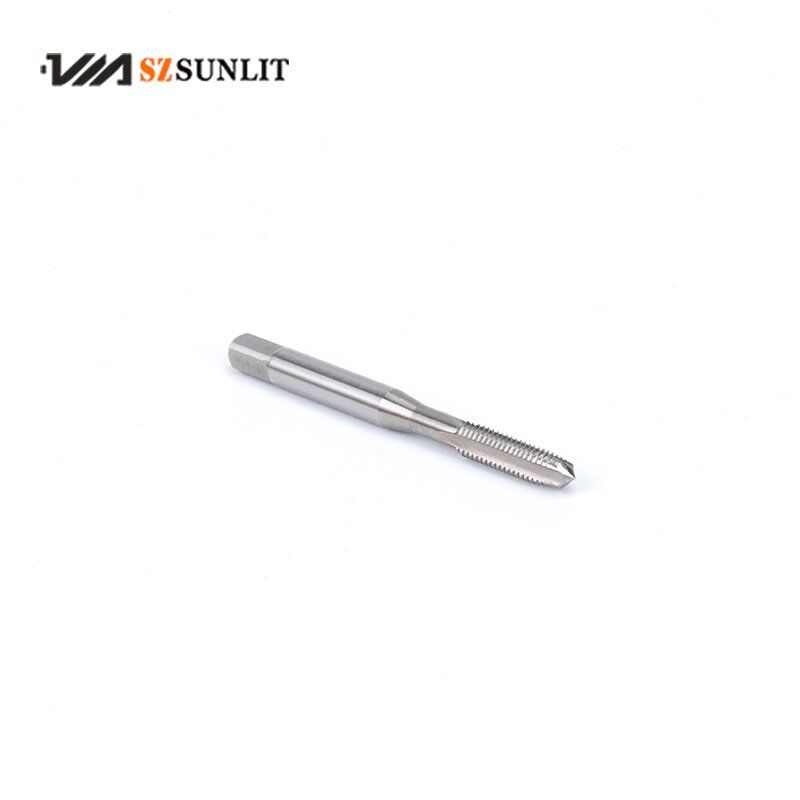

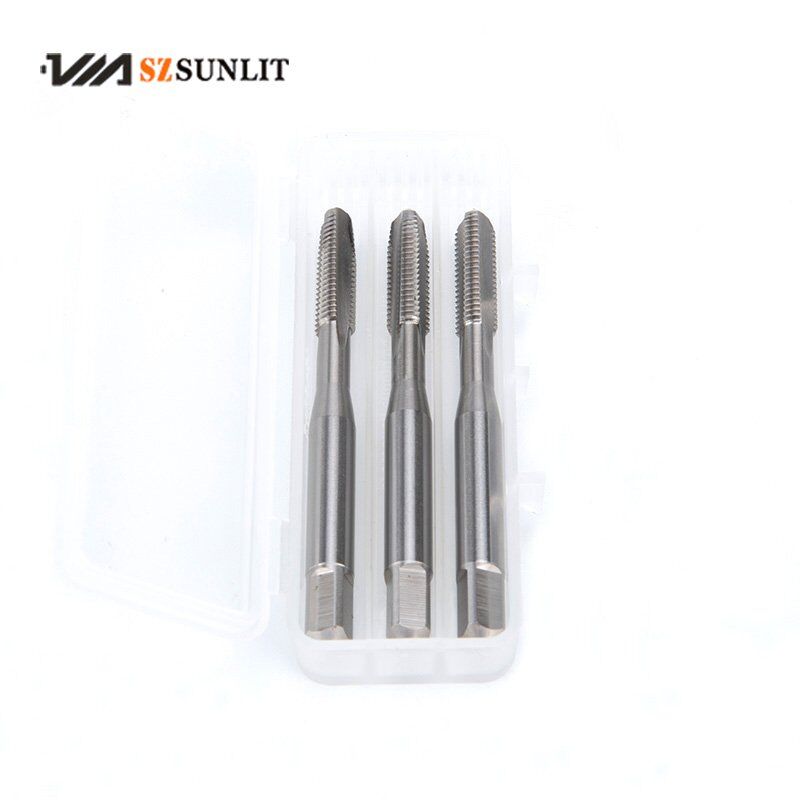

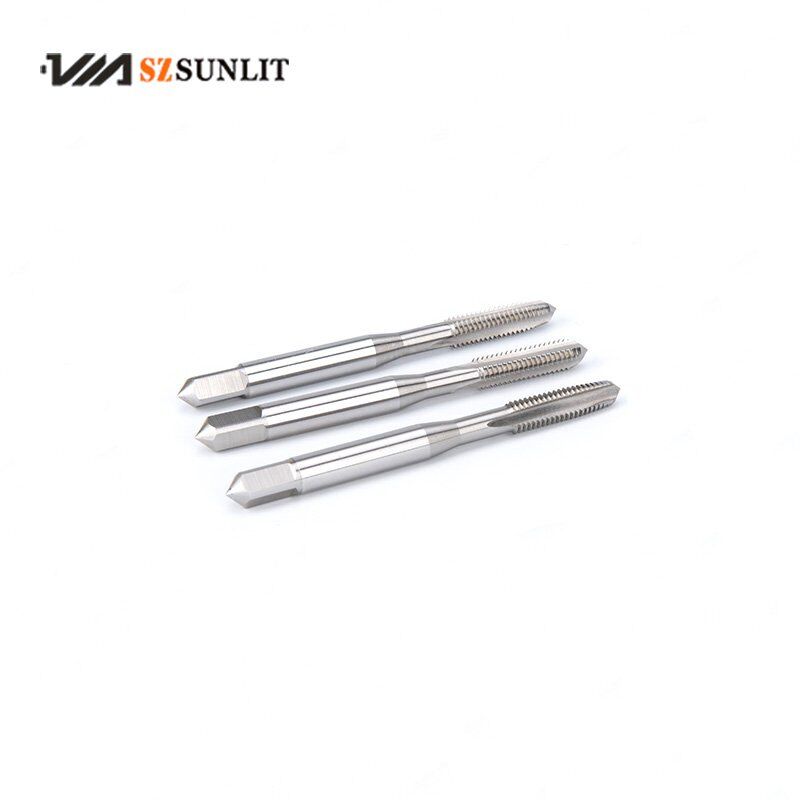

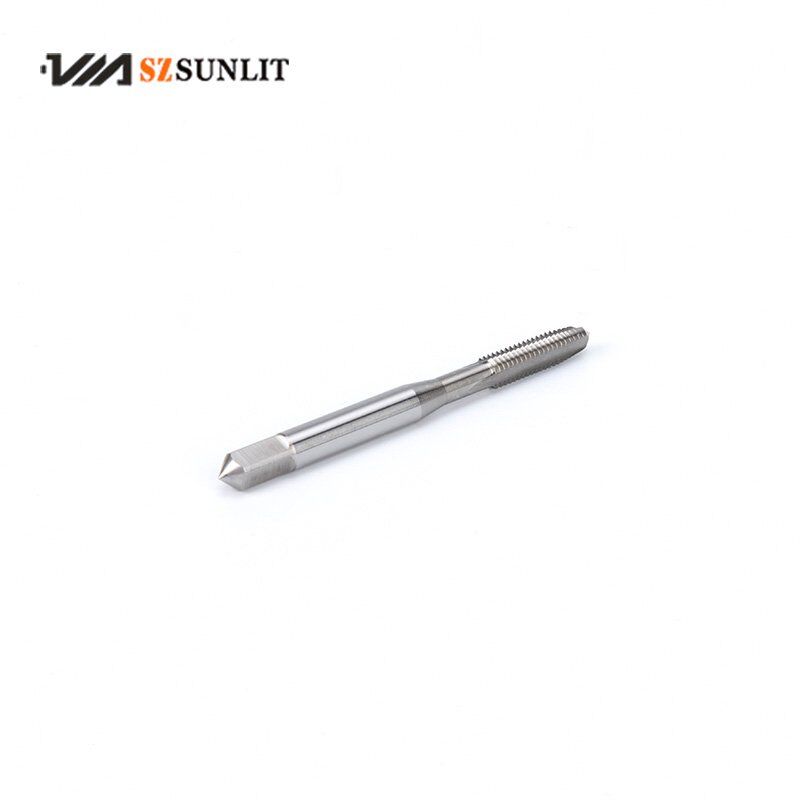

HSS HAND TAPS
| Mode | STCT201 |
|---|---|
| Brand | SZSUNLIT |
| Material | HSS ( Materials from China/Japan) |
| Coating | TIN |
| Standard | JIS |
| Application | CNC machining center, Tapping machine |
| OEM&ODM | Availble |
HSS HAND TAPS
Best Suitable materials :
Cast iron, bronze, cast aluminum, low carbon steel, abrasive steel
Features:
1. Suitable for tapping blind or through holes in Cast iron, bronze, cast aluminum, low carbon steel, abrasive steel
2. Capable of efficient, long life and high speed tapping
| STCT201 Taps Series | Size | Pitch | L | i | li | d | k | Ik | Type | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| 0200400 | M2 | 0.4 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 | 3 |
| 0220450 | M2.2 | 0.45 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 | 3 |
| 0230400 | M2.3 | 0.4 | 42 | 9.5 | 15 | 3 | 2.5 | 5 | 2 | 3 |
| 0250450 | M2.5 | 0.45 | 44 | 9.5 | 16 | 3 | 2.5 | 5 | 2 | 3 |
| 0260450 | M2.6 | 0.45 | 44 | 9.5 | 16 | 3 | 2.5 | 5 | 2 | 3 |
| 0300500 | M3 | 0.5 | 46 | 11 | 18 | 4 | 3.2 | 6 | 2 | 3 |
| 0350600 | M3.5 | 0.6 | 48 | 13 | 20 | 4 | 3.2 | 6 | 2 | 3 |
| 0400700 | M4 | 0.7 | 52 | 13 | 20 | 5 | 4 | 7 | 2 | 3 |
| 0450750 | M4.5 | 0.75 | 55 | 13 | 21 | 5 | 4 | 7 | 2 | 3 |
| 0500800 | M5 | 0.8 | 60 | 16 | 25 | 5.5 | 4.5 | 7 | 2 | 3 |
| 2403000 | M24 | 3 | 120 | 45 | 19 | 15 | 18 | 3 | 4 |
Showing 1 to 10 of 23 entries
