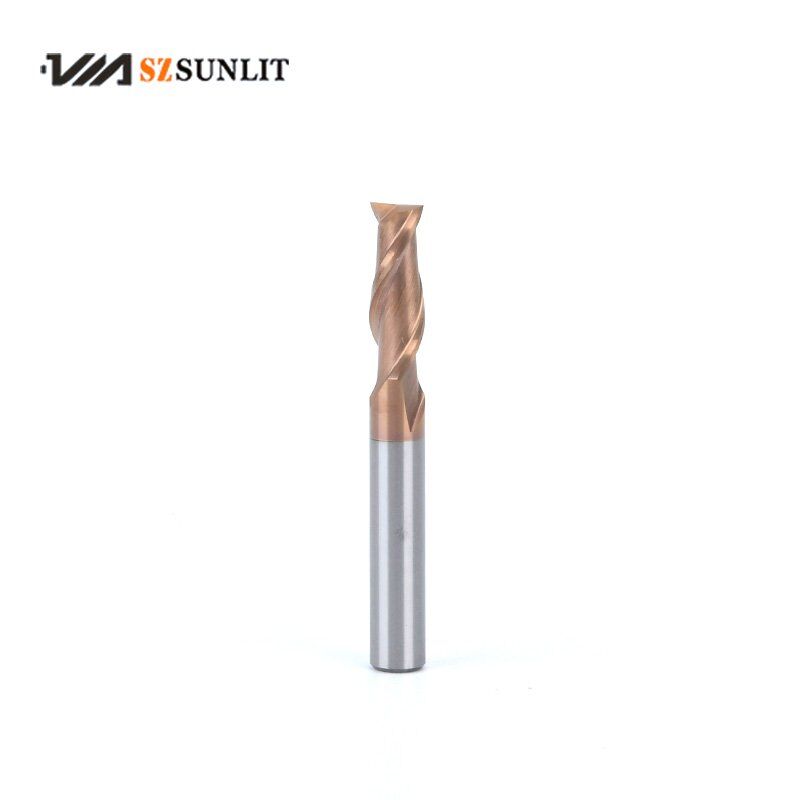

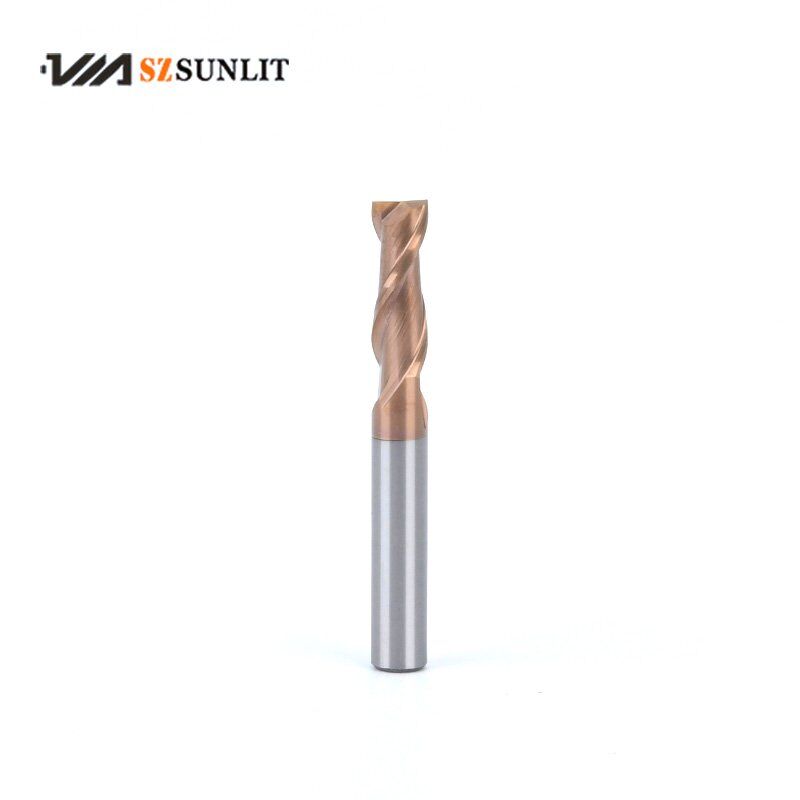

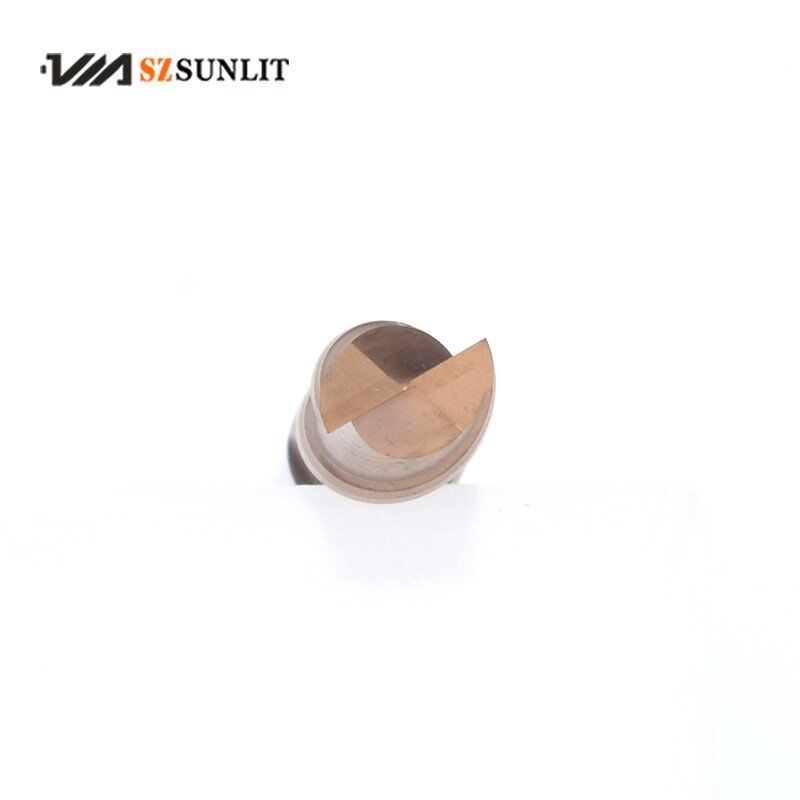

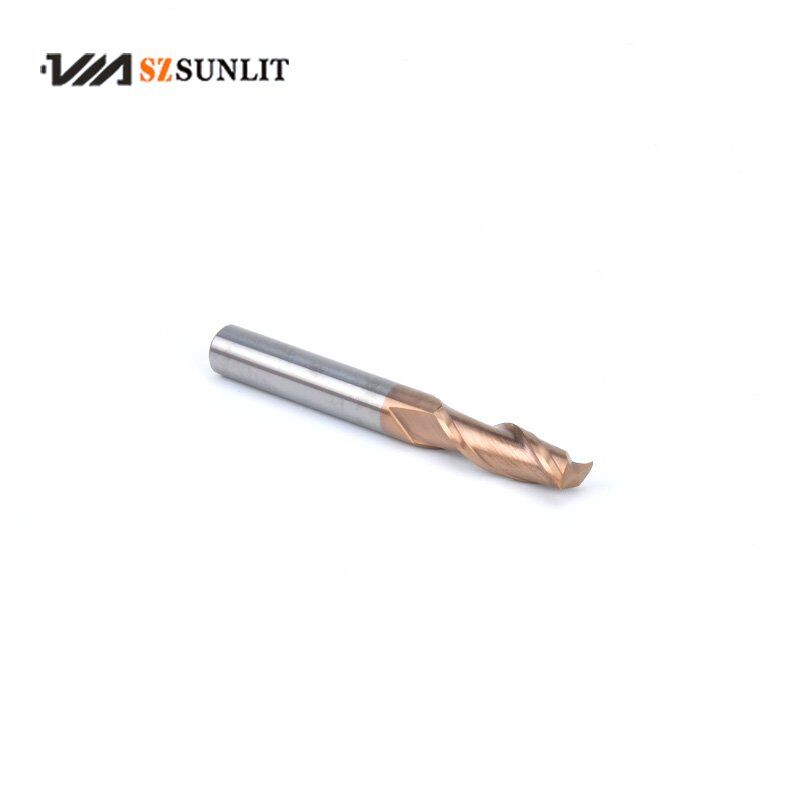

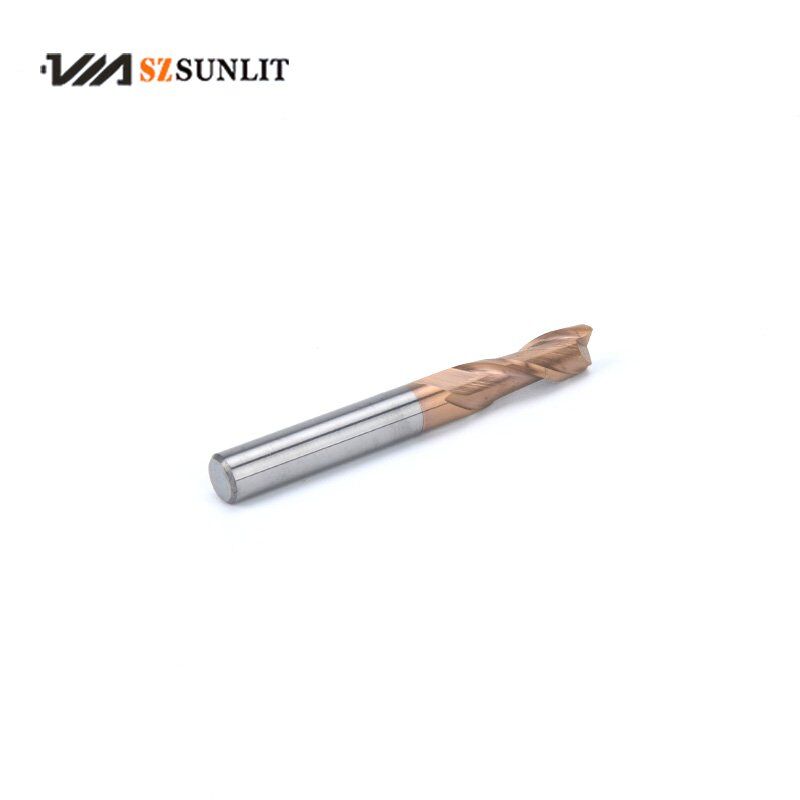

HRC55 Carbide End Mills 2 Flute with bronze coating
| Brand | SZSUNLIT |
|---|---|
| Material | Solid Carbide ( Materials from China/Taiwan/Japan) |
| Coating | AlCrSiN, ALTIN, TIALN, TIALSIN |
| Hardness | HRC55 |
| Flute | 2F, Bull Nose |
| Type of Flute | up spiral |
| Helix Angle | 35° |
| Tolerance | -0.01-0mm, above 6mm:-0.02-0mm |
| Application | CNC Process, Milling tool |
| OEM&ODM | Availble |
HRC55 Carbide End Mills 2 Flute with bronze coating
Best Suitable materials : Alloy steel
could also suitable for below materials:
1. Prehardened Steel, hardened steel HRC40-55 (Excellent)
2. Hardened steel HRC55-70(Good)
Features:
1. Designed to machine high hardened materials
2. Suitable for high speed machining in wet or dry condition with new coating
3. Corner radius against chipping in high speed machining
4. Higher wear-resistance
| Item NO. | Flute Dia./mm | Shank Dia./mm | Flute Length/mm | OAL/mm |
|---|---|---|---|---|
| STCMC21010030050 | 1 | 4 | 2 | 50 |
| STCMC21015045050 | 1.5 | 4 | 3 | 50 |
| STCMC21020060050 | 2 | 4 | 4 | 50 |
| STCMC21025070050 | 2.5 | 4 | 5 | 50 |
| STCMC21030080050 | 3 | 4 | 6 | 50 |
| STCMC21030090075 | 3 | 4 | 9 | 75 |
| STCMC21030120100 | 3 | 4 | 9 | 100 |
| STCMC21035010050 | 3.5 | 4 | 7 | 50 |
| STCMC21040011050 | 4 | 4 | 8 | 50 |
| STCMC21040012075 | 4 | 4 | 12 | 75 |
| STCMC21040016100 | 4 | 4 | 12 | 100 |
| STCMC21050013050 | 5 | 6 | 10 | 50 |
| STCMC21050015075 | 5 | 6 | 12 | 75 |
| STCMC21050020100 | 5 | 6 | 15 | 100 |
| STCMC21060015050 | 6 | 6 | 12 | 50 |
| STCMC21060020075 | 6 | 6 | 15 | 75 |
| STCMC21060025100 | 6 | 6 | 15 | 100 |
| STCMC21060030150 | 6 | 6 | 18 | 150 |
| STCMC21080020060 | 8 | 8 | 16 | 60 |
| STCMC21080025075 | 8 | 8 | 20 | 75 |
| STCMC21080035100 | 8 | 8 | 20 | 100 |
| STCMC21080040150 | 8 | 8 | 25 | 150 |
| STCMC21010025075 | 10 | 10 | 20 | 75 |
| STCMC21010040100 | 10 | 10 | 25 | 100 |
| STCMC21010050150 | 10 | 10 | 30 | 150 |
| STCMC21012030075 | 12 | 12 | 24 | 75 |
| STCMC21012045100 | 12 | 12 | 30 | 100 |
| STCMC21012055150 | 12 | 12 | 35 | 150 |
| STCMC21014040100 | 14 | 14 | 28 | 100 |
| STCMC21016045100 | 16 | 16 | 32 | 100 |
| STCMC21018045100 | 18 | 18 | 36 | 100 |
| STCMC21020045100 | 20 | 20 | 40 | 100 |
| Remark: production solution will be offered based on your working condition.Special sizes and design can be customized as you request | ||||
